Alignment Conveyor

MT-CON/1600

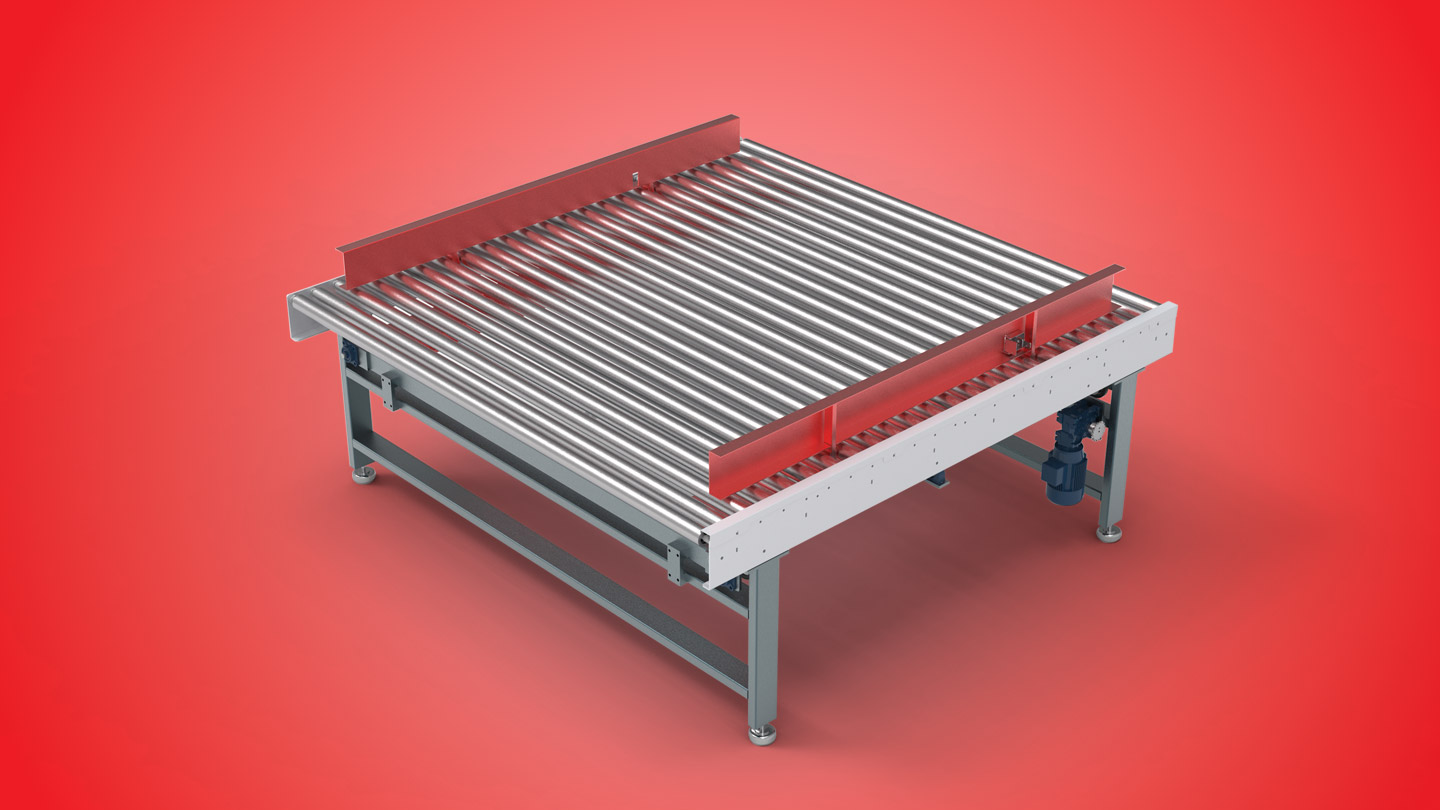

Alignment-Conveyor

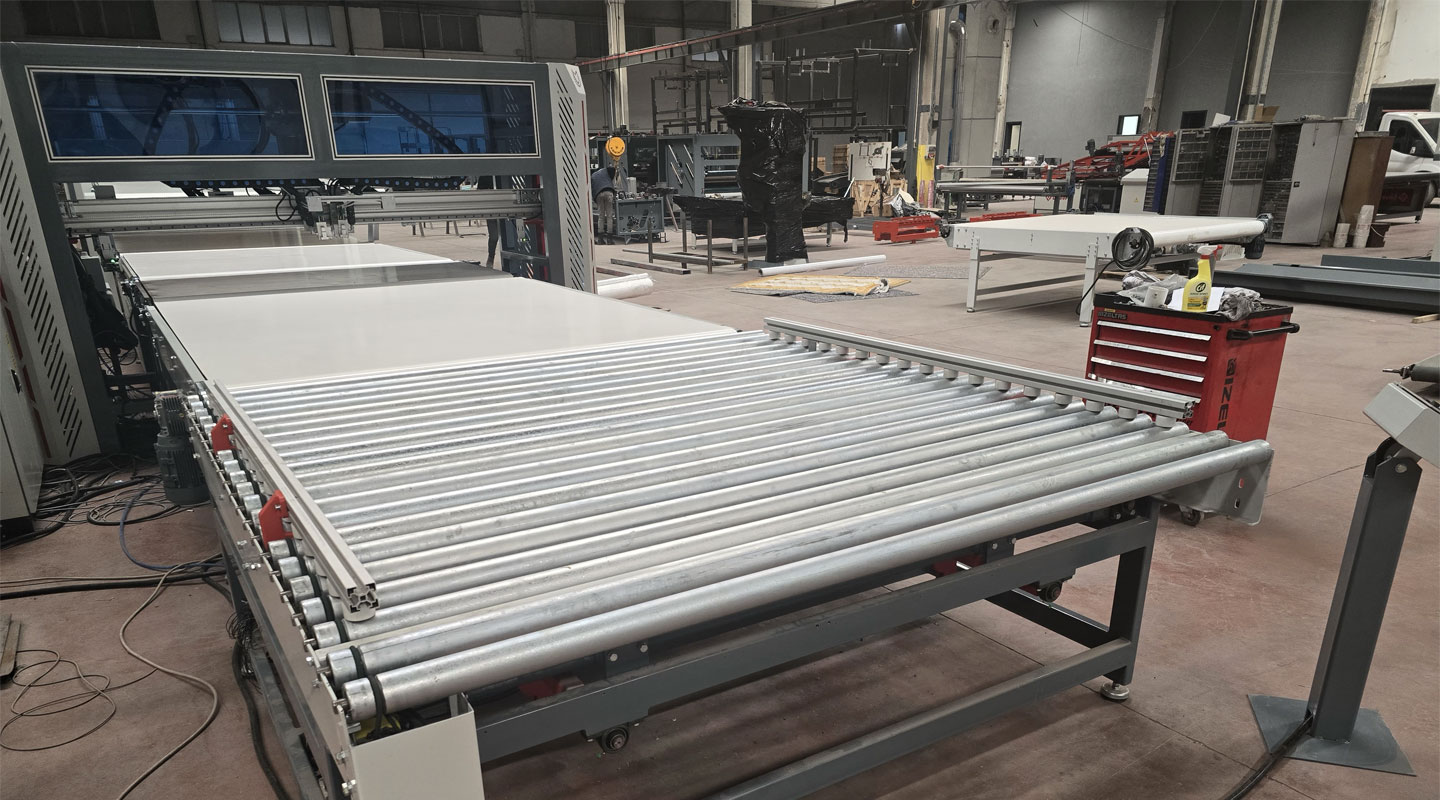

Alignment-Conveyor-2

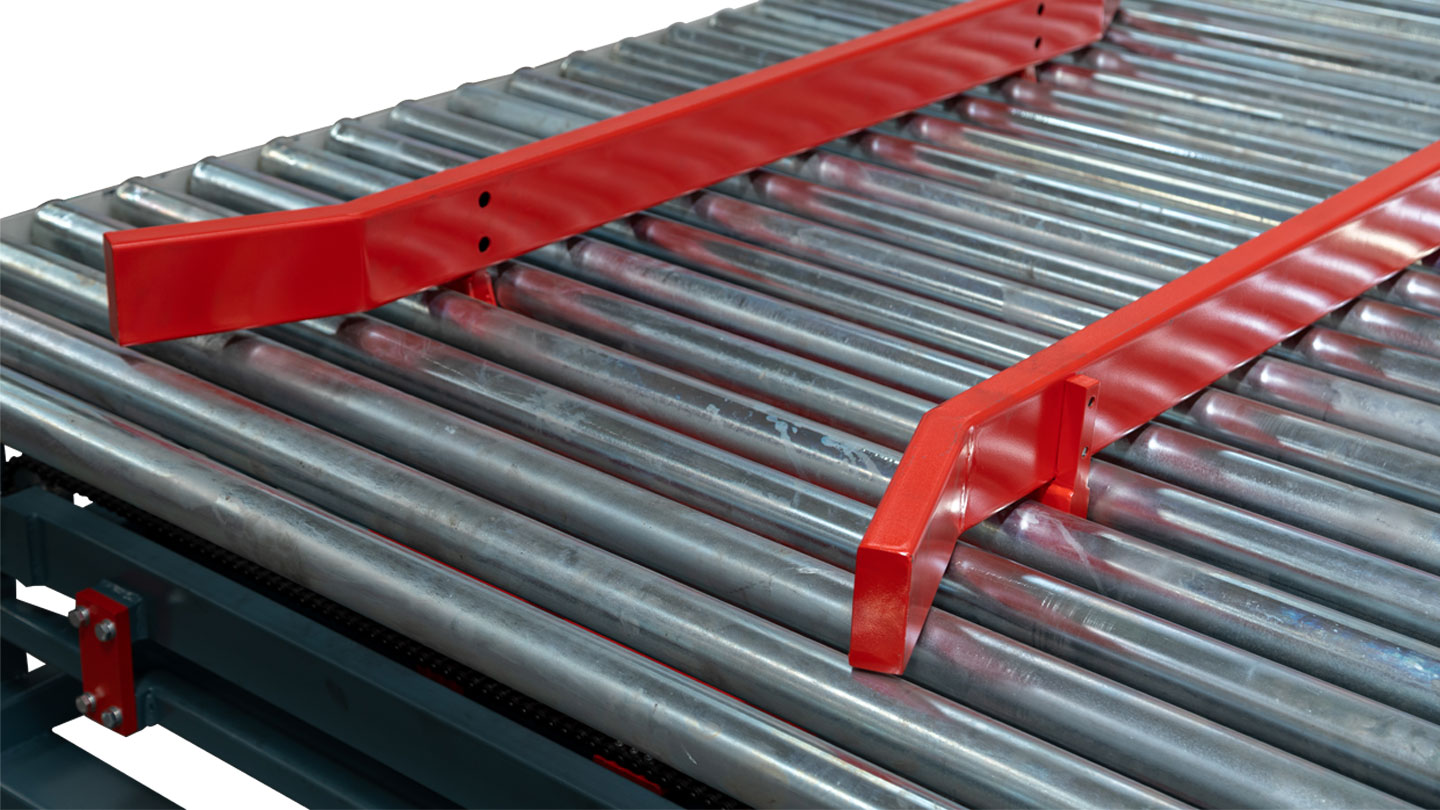

alignment-conveyor-3-lineer

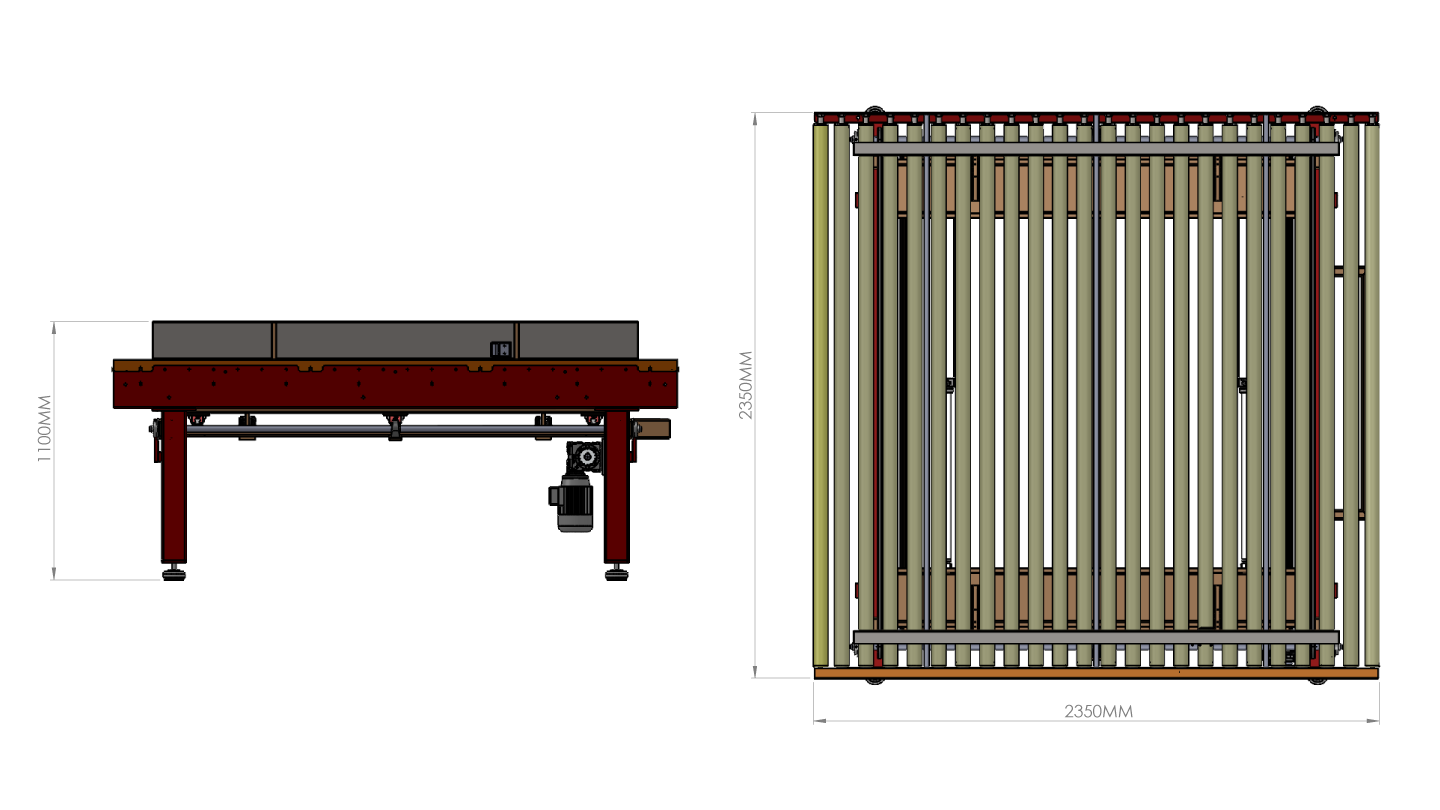

Alignment-Conveyor-Dimension

Sensor-Based Alignment

Measures mattress dimensions and stops them at the center for precise alignment.

Flexible Design

Handles various sizes and weights without adjustment.

Versatile Use

Functions as a centering or standard transfer conveyor.

Durable System

Equipped with a long-lasting, low air consumption Festo pneumatic system.

Pneumatic Lift System

Lifts mattresses for redirection using a Festo pneumatic system.
SPECIFICATIONS
DimensionW: 2350 - L: 2350 - H: 900 (mm)
Max. Product DimensionW: 2000 - L: 2250 - H: 500 (mm)
Min. Product DimensionW: 700 - L: 1800 - H: 100 (mm)
Weight400 kg
ConveyorRoller Conveyor
Power0.75 kW
Air Pressure6 - 8 bar
Electricity380 VAC (II+N+TT)
