Automatic Mattress Packaging Machine (Pneumatic Press)

You are here:

Home
Mattress
Mattress Packaging
Automatic Mattress Packaging Machine (Pneumatic Press)

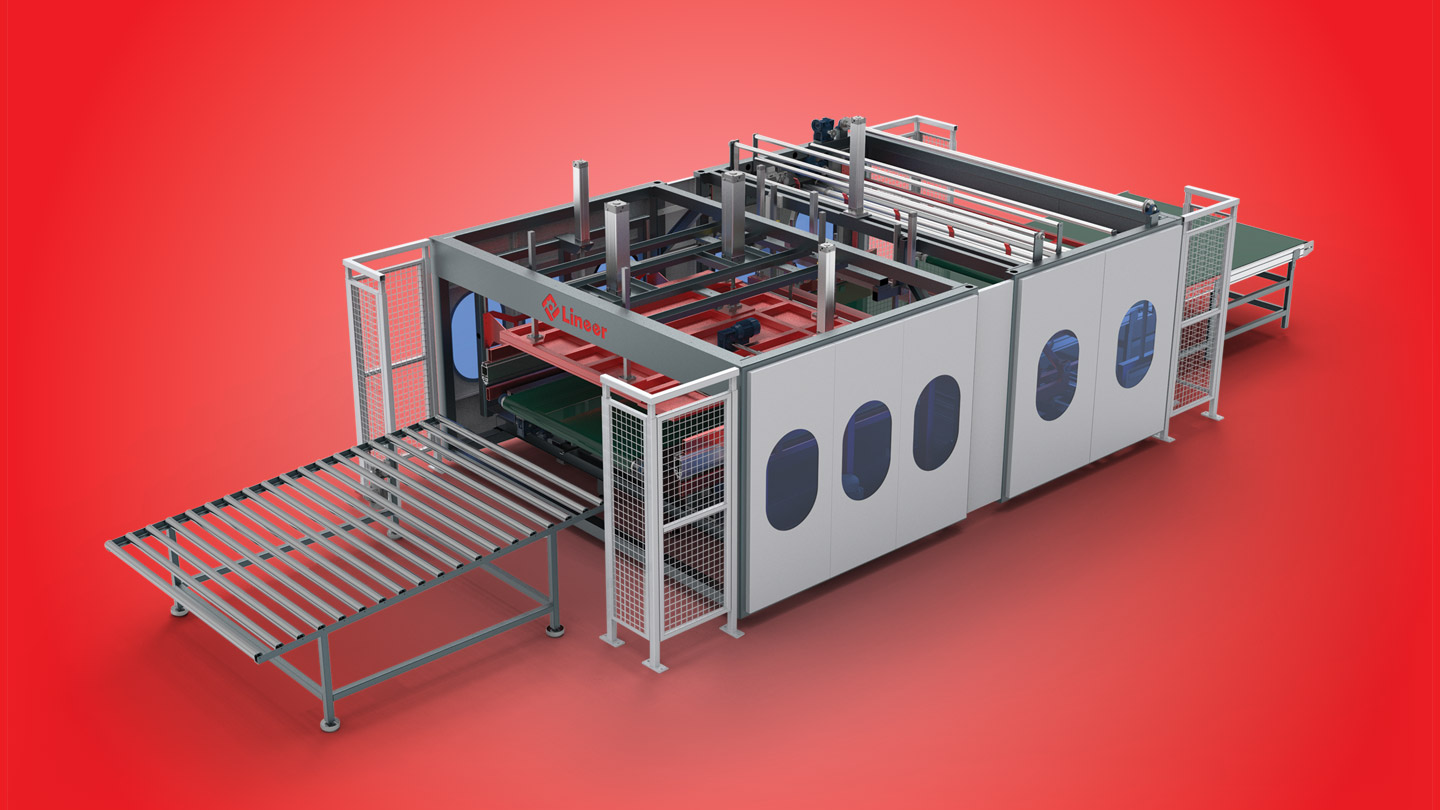

Automatic Mattress Packaging Machine (Pneumatic Press)

MT-PG/4100 Optima

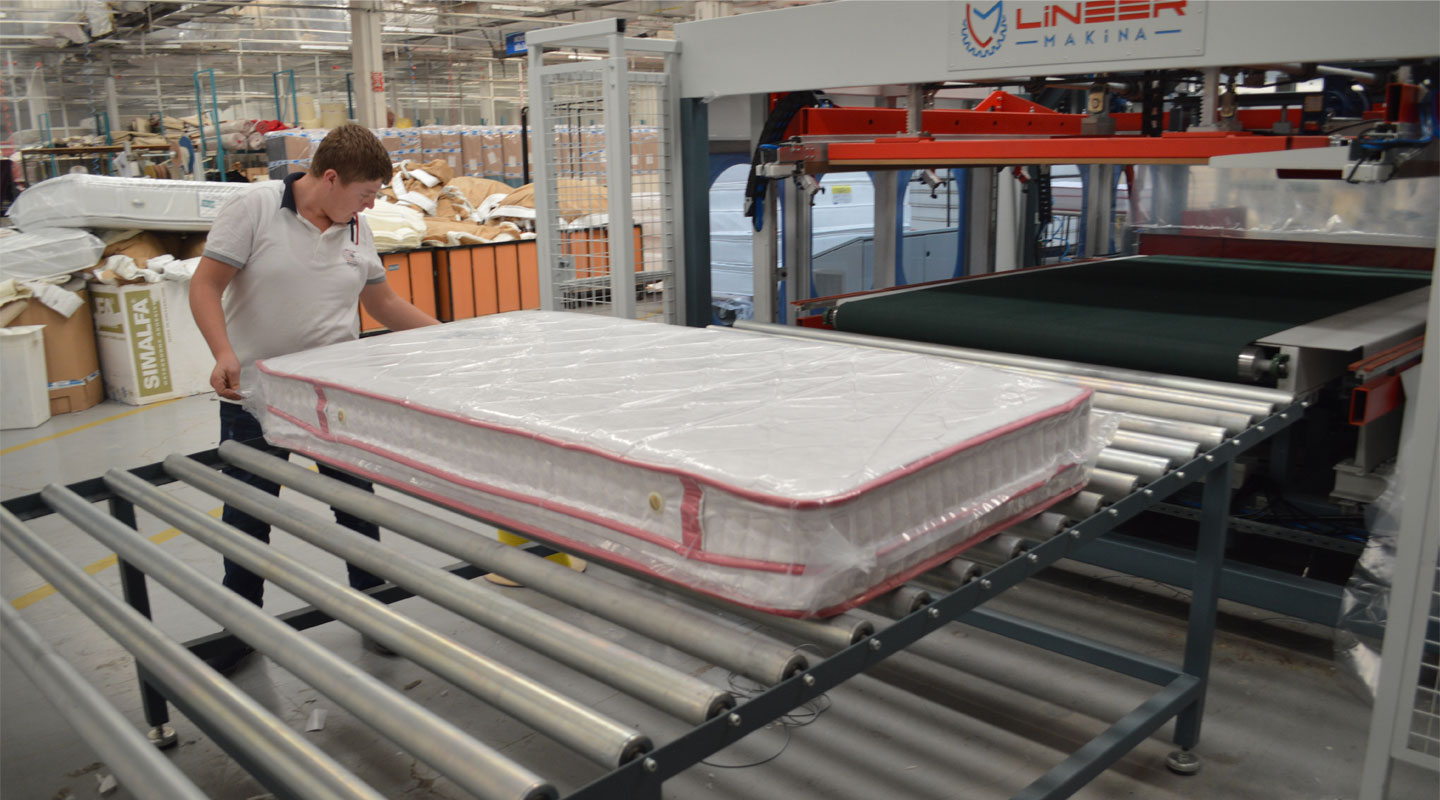

Automatic-Mattress-Packaging-Machine-PneumaticPress-2

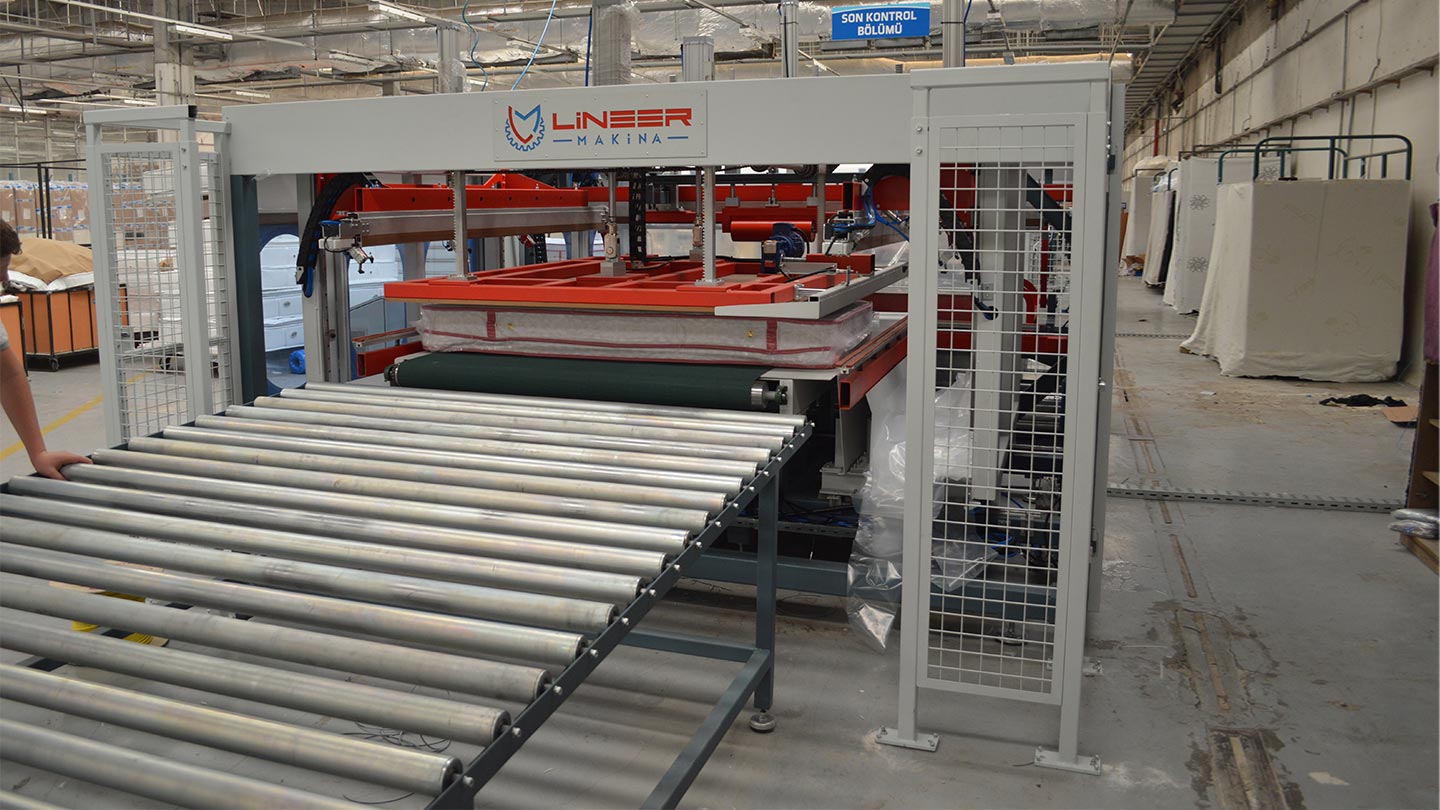

Automatic-Mattress-Packaging-Machine-Pneumatic-Press-3-Lineer-

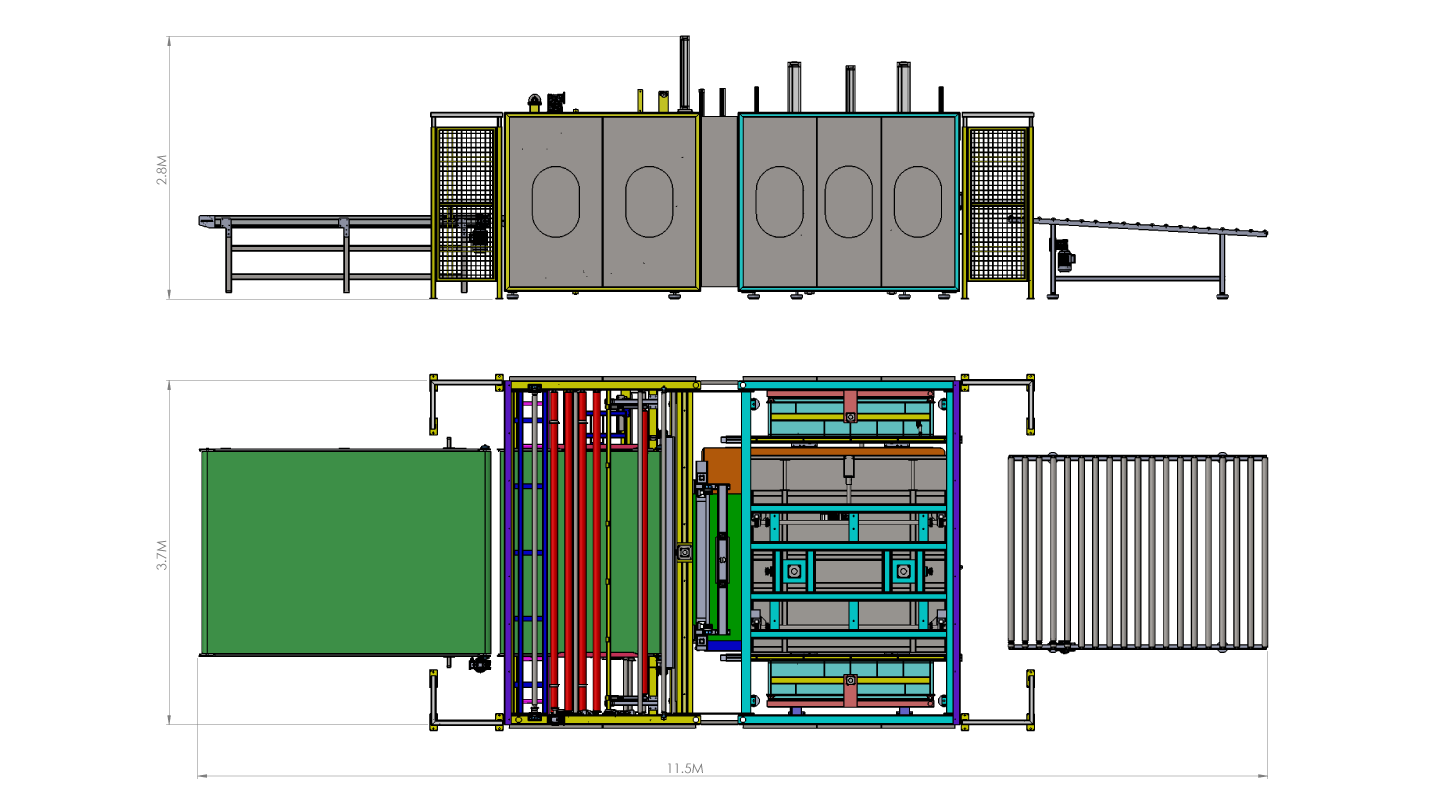

Automatic-Mattress-Packaging-Machine-PneumaticPress-Dimension

This machine uses the packaging material from the coils located at the top and bottom inside the machine to fully encase and package the mattress. This packaging prevents the mattress from being affected by dust, dirt, and moisture.

Product Compatibility

It packages mattresses of various sizes horizontally; with the aid of the pneumatic press, it ensures tighter packaging.

Advanced Sealing System

Water-cooled sealing units provide strong packaging with adjustable cooling times and uniform heat distribution.

Superior Performance

Features automatic product size recognition, adjustable packaging tension, and a pre-press conveyor that enhances packaging speed and quality.

Waste Management

The gripper system directs cut film waste to the waste system.

Durability and Easy Maintenance

Equipped with a long-lasting Festo pneumatic system, the machine also offers online service support.

Additional Features

The machine stands out from others with its double packaging option, packaging feed elevator, automatic size detection system, and hydraulic press conveyor.

SPECIFICATIONS
Dimension	W: 3700 - L: 11500 - H: 2800 (mm)
Max. Product Dimension	W: 2150 - L: 2150 - H: 500 (mm)
Min. Product Dimension	W: 700 - L: 1800 - H: 50 (mm)
Weight	4500 kg
Conveyor	2.7 PVC Belt
Capacity	1 mattress / 30 seconds
Power	11 kW
Air Pressure	6-8 bar
Electricity	380 VAC (III+N+TT)
