Automatic Mattress Packing Machine (Hydraulic Press)

MT-PG/4200 Maxima

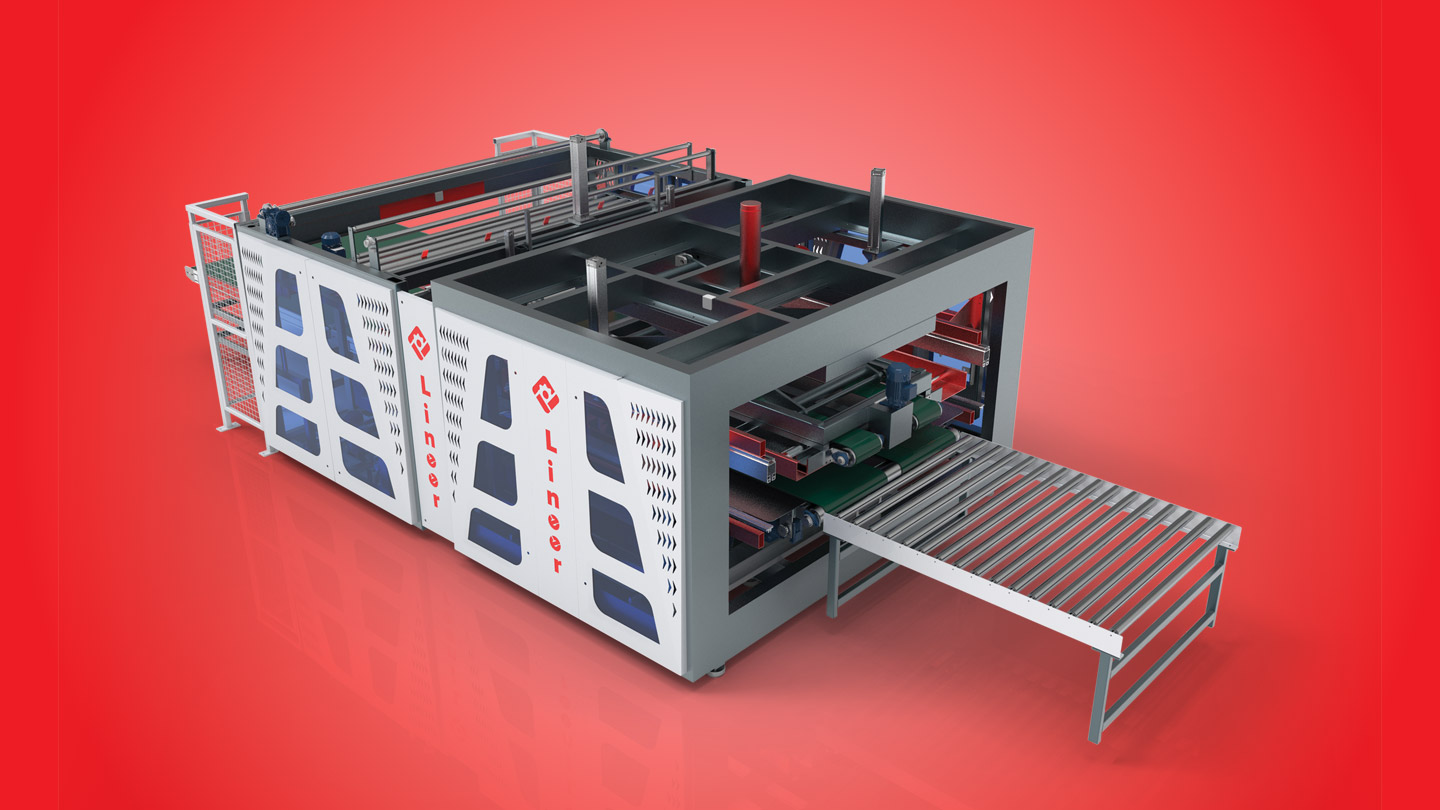

Automatic-Mattress-Packing-Machine-HydraulicPress

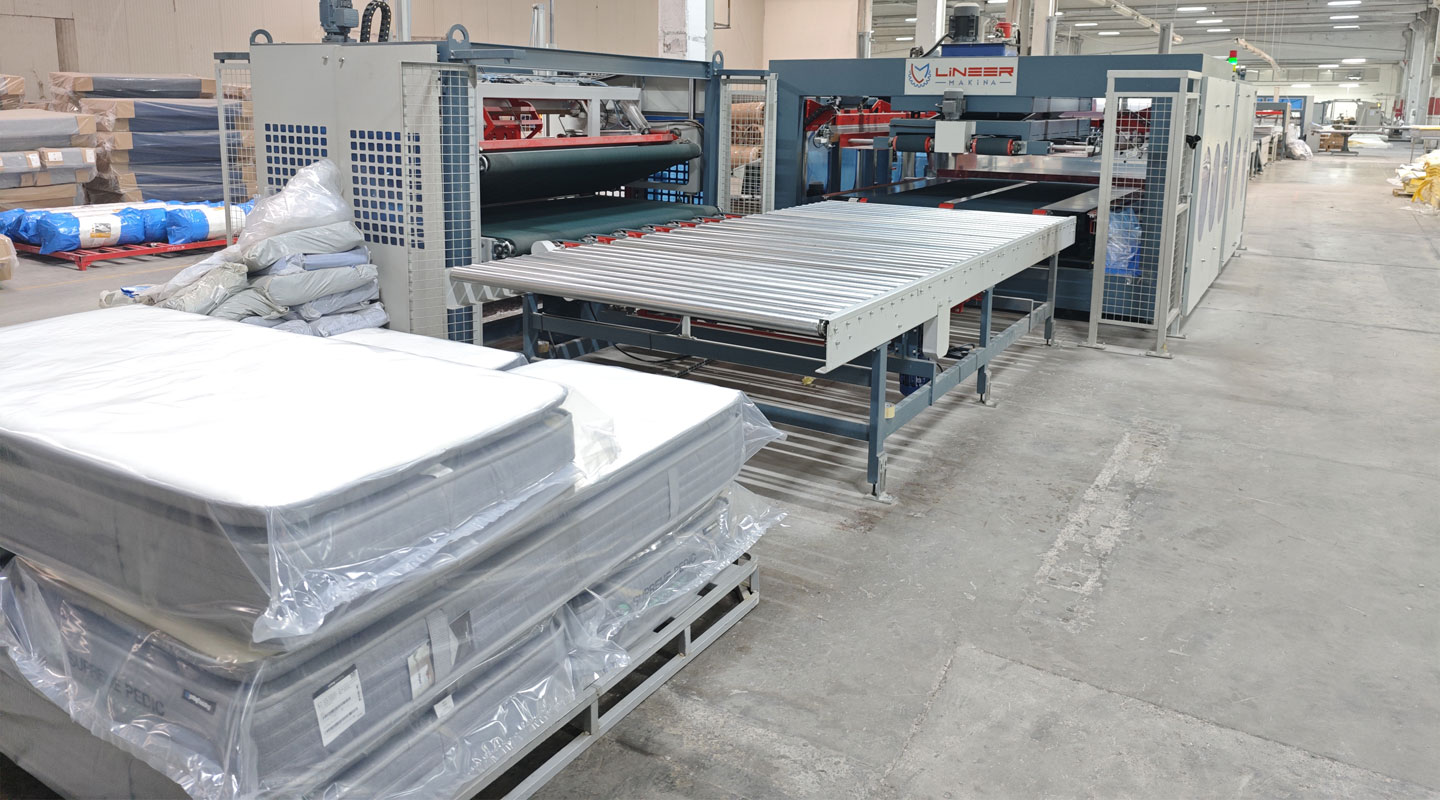

Automatic-Mattress-Packing-Machine-HydraulicPress-3

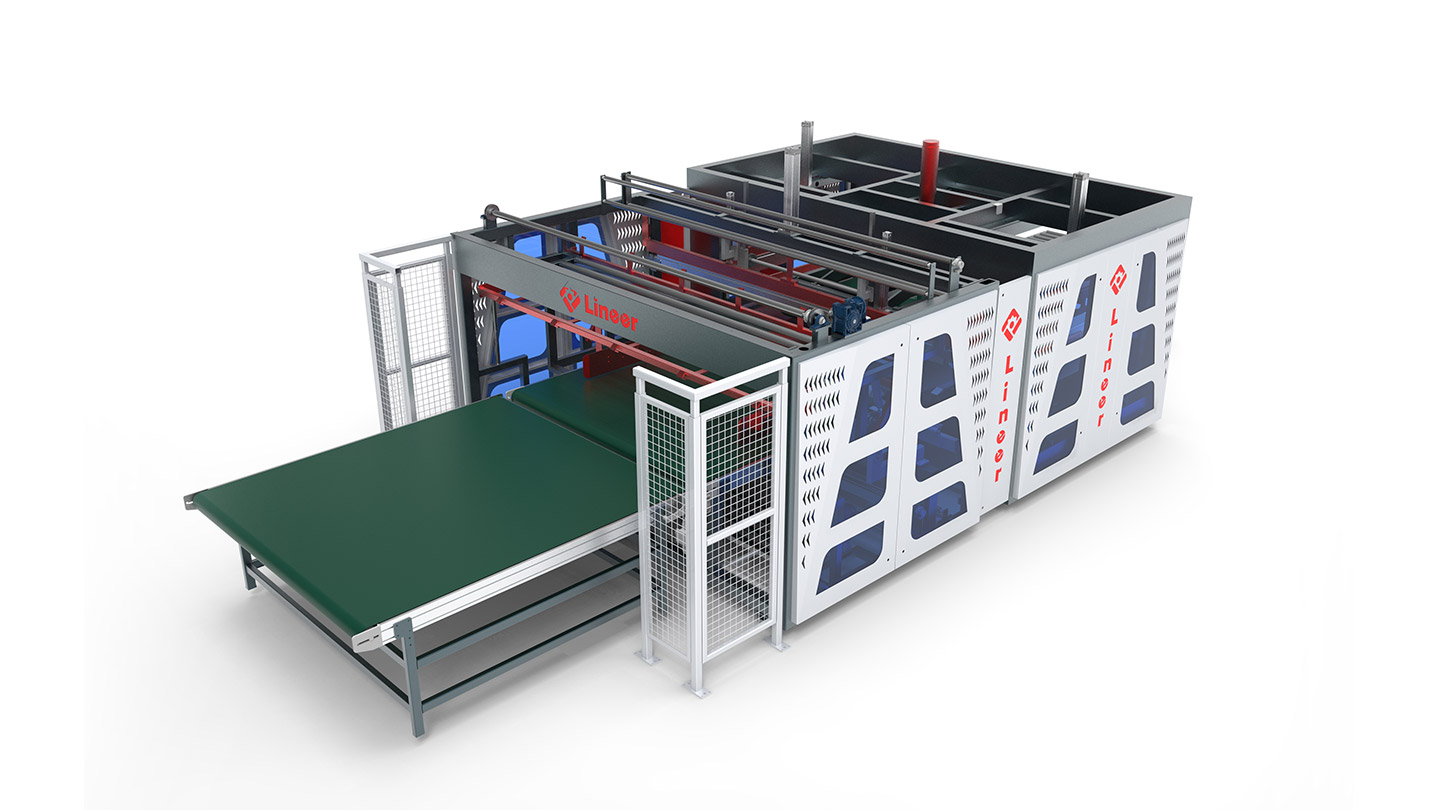

Automatic-Mattress-Packing-Machine-HydraulicPress-2

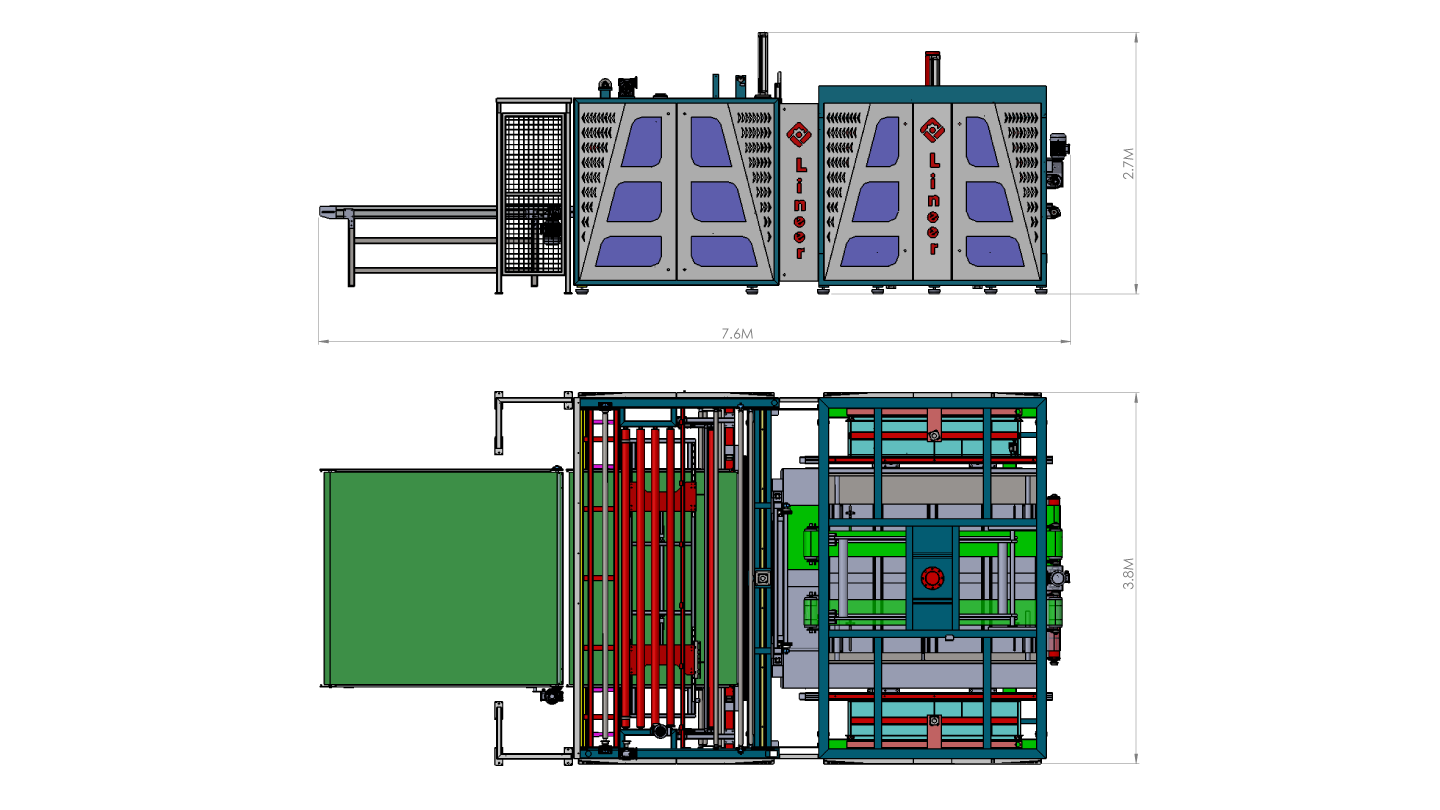

Automatic-Mattress-Packing-Machine-HydraulicPress-Dimension
This machine uses nylon packaging in the form of a coil placed in the top and bottom sections to fully enclose the mattress in packaging, completing the packaging process. This ensures that the mattress is protected from dust, dirt, and moisture.

Versatile Packaging

Packages mattresses of various sizes horizontally and reduces volume with a 60-ton hydraulic press.

Advanced Welding System

Water-cooled welding units, adjustable cooling time, and uniform heat distribution provide reliable packaging capabilities.

Superior Performance

Features automatic product size recognition, adjustable packaging tension, and a pre-press conveyor to enhance packaging speed and quality.

User-Friendly

Enclosed cabin with safety switches.

Waste Management

The gripper system directs the cut film waste into the waste disposal system.

Durability and Easy Maintenance

Equipped with a long-lasting Festo pneumatic system. Online service availability.

Additional Features

Dual packaging option, packaging feed elevator, automatic size detection system, and hydraulic press conveyor set this machine apart from competitors.
SPECIFICATIONS
DimensionW: 3.8 - L: 7.6 - H: 2.7 (m)
Max. Mattress SizeW: 215 - L: 215 - H: 50 (cm)
Min. Mattress SizeW: 70 - L: 180 - H: 50 (cm)
Weight8000 kg
Capacity30 seconds per mattress
Conveyor BeltPVC 2.7
Power15 kW
Air Pressure6-8 bar
Electricity380 VAC (III+N+TT)
Press TypeHydraulic
Max. Pressure Load65 tons
