Automatic Mattress Tape Edge Machine

MT-TE/1000

Automatic-Mattress-TapeEdge-Machine
Automatic-Mattress-TapeEdge-Machine-2
Automatic-Mattress-TapeEdge-Machine-3

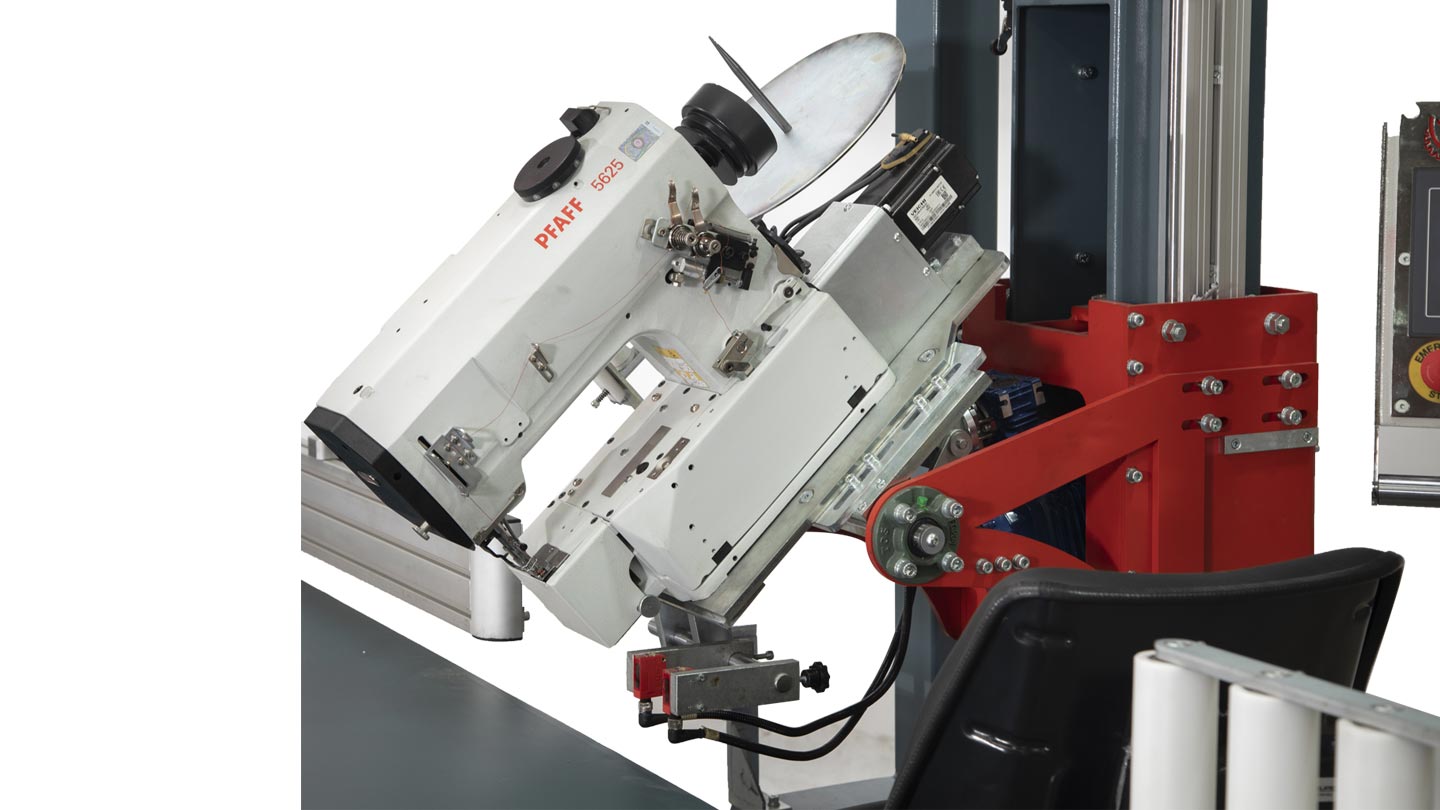

Customizable Sewing Head Selection:

Compatible with high-performance sewing heads such as PFAFF 5625 and CTEC 300UB5, this system can be tailored to meet specific customer requirements. It offers automatic angle and height adjustment for chain stitch, needle cooling, and precise stitching within a 5–48 cm range.

Ergonomic Corner Turning System:

The sensor-driven corner turning system guarantees smooth operation with automatic arm rotation and deceleration, eliminating the need for pedals. This feature ensures uninterrupted stitching after the mattress is flipped, delivering consistent, professional-quality corner stitching with the automatic edge descent function.

Integrated Mattress Turning Unit:

Effortlessly turns and repositions heavy mattresses, streamlining the production process.

Advanced Stitching Precision:

Achieves flawless stitching with adjustable stitch length and a synchronized transport-sewing system. The servo motor ensures precise corner stitching and accurate needle positioning for superior results.

User-Centric Design:

The height-adjustable electric seat and single transport belt enhance operator comfort while ensuring safe and damage-free mattress handling.

Efficient Maintenance:

External component placement simplifies maintenance, improving productivity and ease of servicing through seamless production line integration.

Ease of Operation:

Streamlined controls accelerate operator training and boarding. The automatic mattress conveyor system reduces labor costs and boosts production efficiency.
SPECIFICATIONS
Machine Size E: 3500 mm, W: 4500 mm, H: 2400 mm
Max. Product SizeE: 2200 mm, W: 2200 mm, H: 500 mm
Min. Product DimensionsE: 700 mm, W: 1800 mm, H: 100 mm
Machine Weight1600 kg
Sewing HeadPFAFF-CTEC (according to customer demand
Roving Apar42mm (Standard)
Capacity200-250 pieces/8 hours
Conveyor Belt 2.7 PVC Belt
Total Power3 kW
Air 6-8 Bar
Electricity380 VAC (II+N+TT)
