Flipper Conveyor

MT-CON/1800

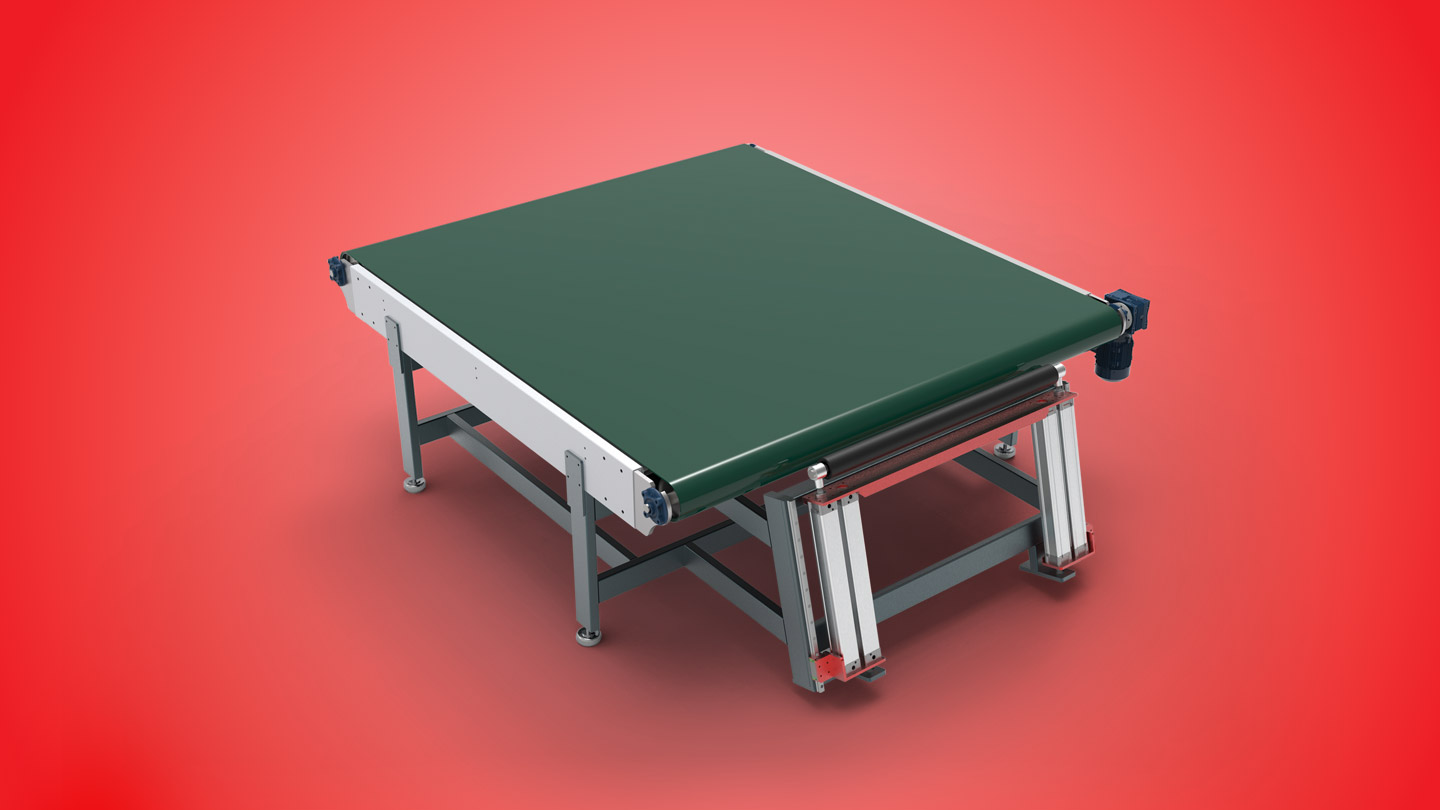

Flipper-Conveyor

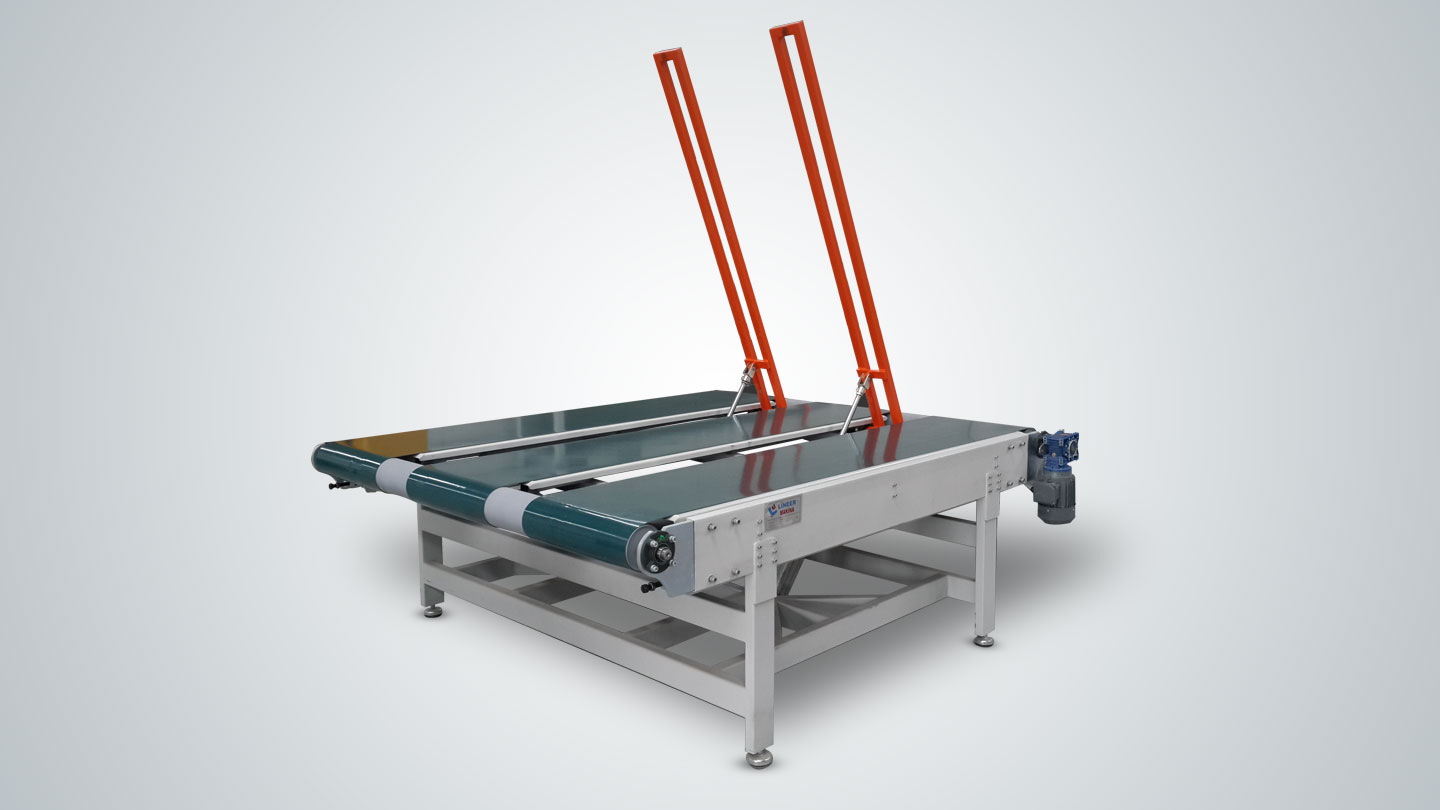

Flipper-Conveyor-2-Lineer

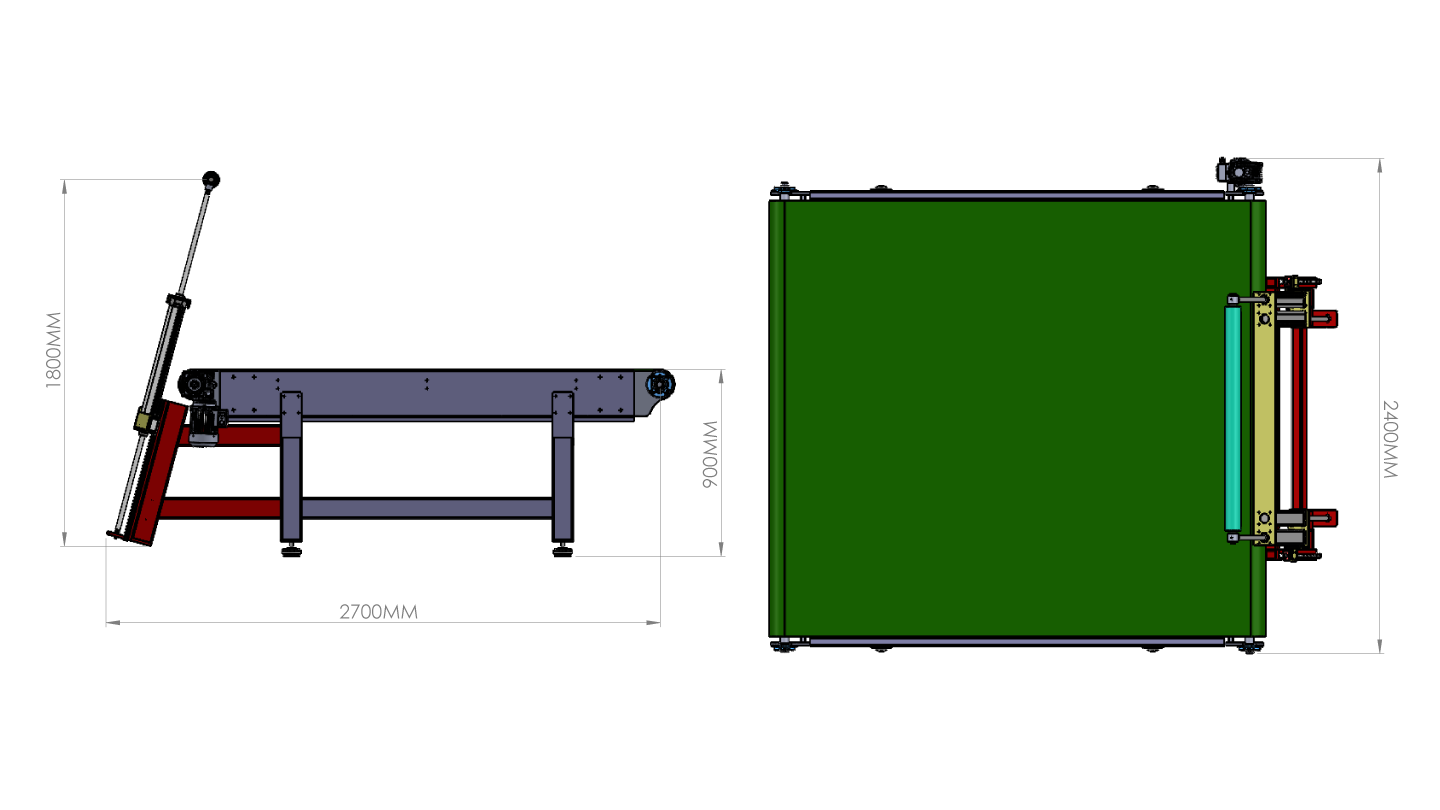

Flipper-Conveyor-Dimension
Designed for efficient flipping or transfer of mattresses on production lines.

Flexible Operation

Flips mattresses forward or backward, or functions as a transfer conveyor without flipping.

Ergonomic Design

Handles various mattress sizes without adjustment; prevents deformation during flipping.

Advanced Sensors

Detects mattress presence automatically.

Safety and Durability

Safety barriers and a durable Festo pneumatic system ensure reliable operation. Available in single-arm or double-arm configurations.
SPECIFICATIONS
DimensionW: 2350 - L: 2700 - H: 900 (mm)
Max. Product DimensionW: 2000 - L: 2250 - H: 500 (mm)
Min. Product DimensionW: 700 - L: 1800 - H: 100 (mm)
Weight550 kg
Capacity1 mattress / 15 seconds
Conveyor2.7 PVC Belt
Power0.75 kW
Air Pressure6 - 8 bar
Electricity380 VAC (II+N+TT)
