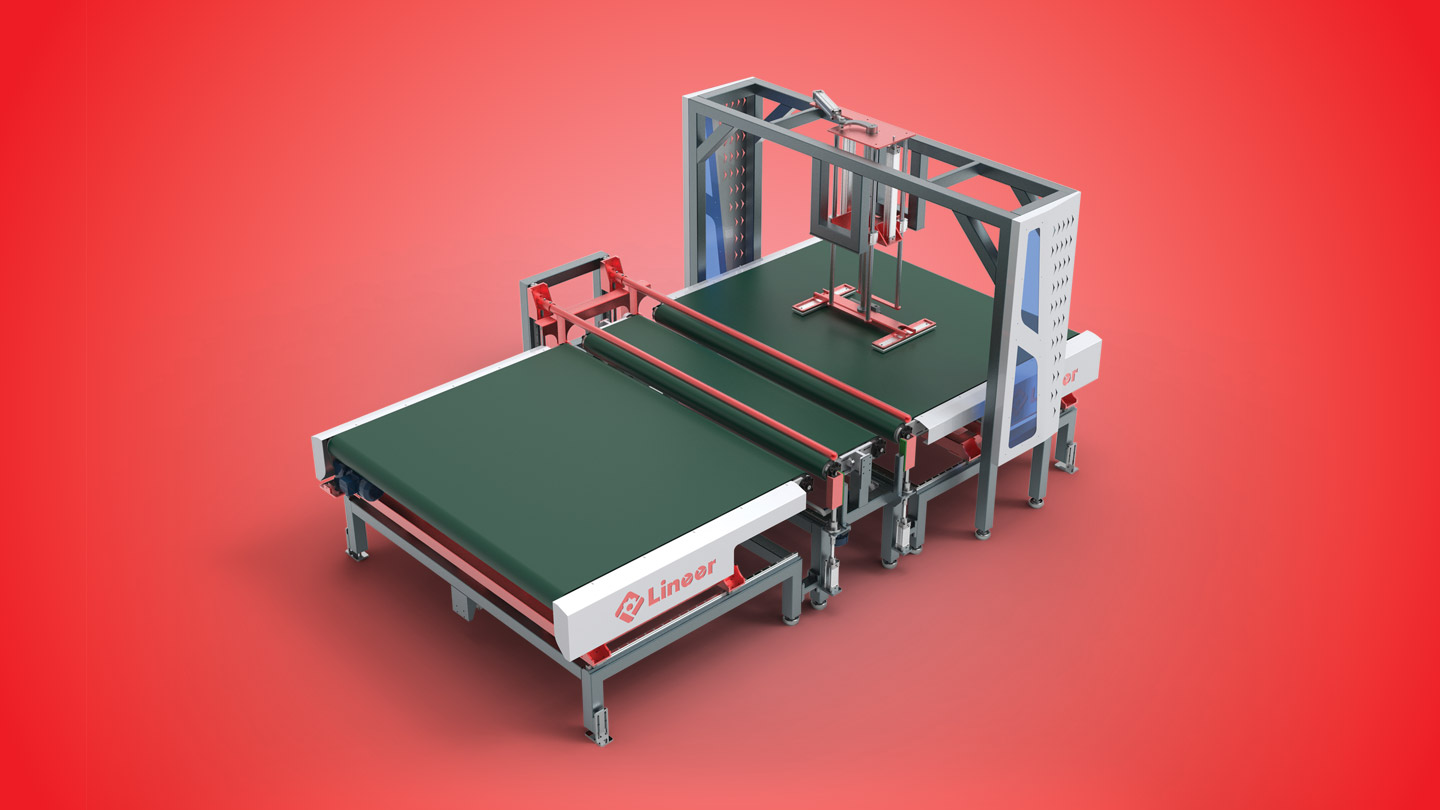

Mattress Folding Conveyor

MT-CON/2000

FEATURES

This conveyor folds mattresses that have been packed and pressed in semi-automatic or fully automatic hydraulic presses into two or three, before entering the roll-pack machine.
Folding process helps in creating a smaller package height. The conveyor alternatively can be used to direct pressed mattresses to the roll-pack unit without folding them.
SPECIFICATIONS

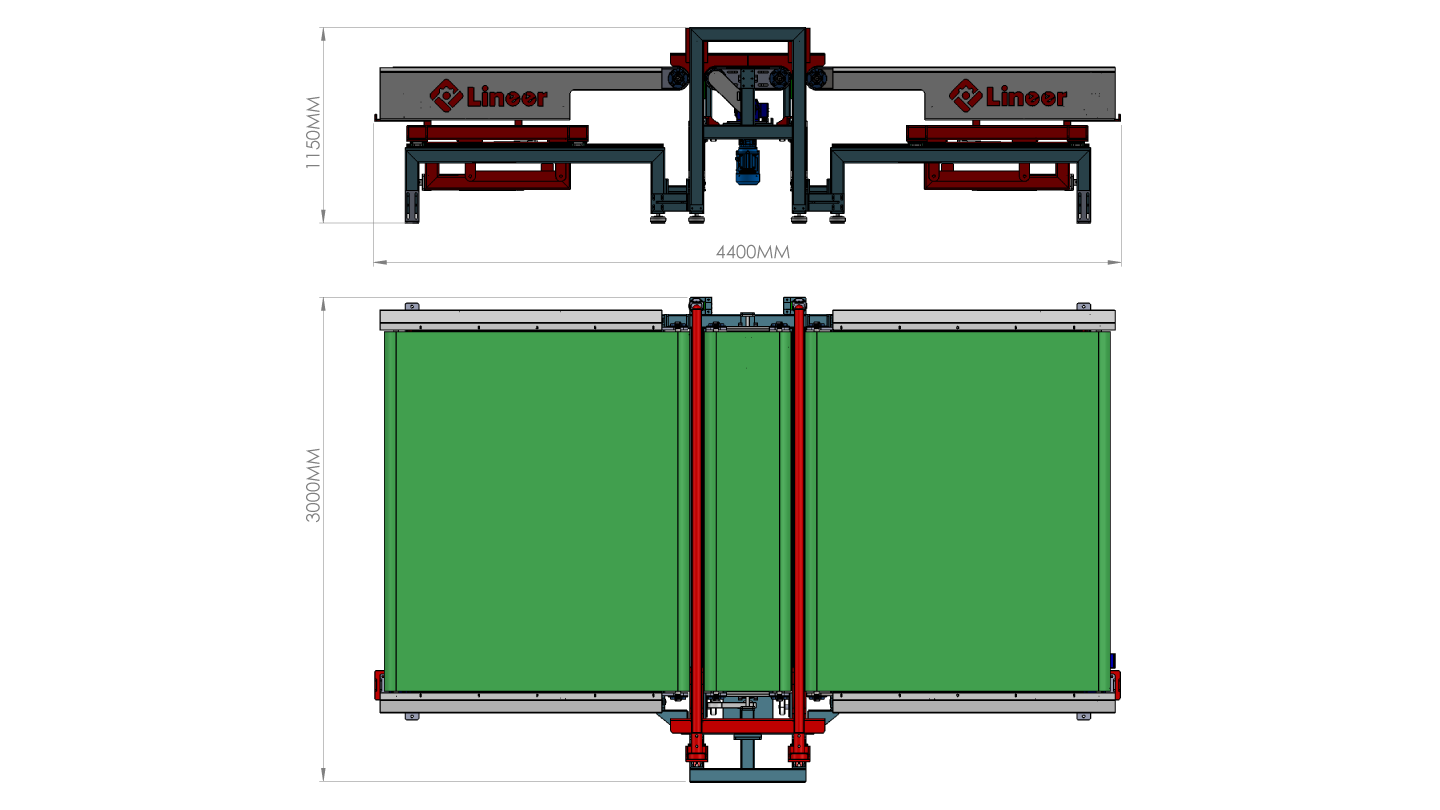

DimensionW: 2400 - L: 5000 - H: 2000 (mm)
Max. Product DimensionW: 2100 - L: 2200 - H: 500 (mm)
Min. Product DimensionW: 700 - L: 1800 - H: 50 (mm)
Weight1150 kg
Conveyor2.5 PVC
Power3 kW
Electricity380 VAC (II+N+TT)
