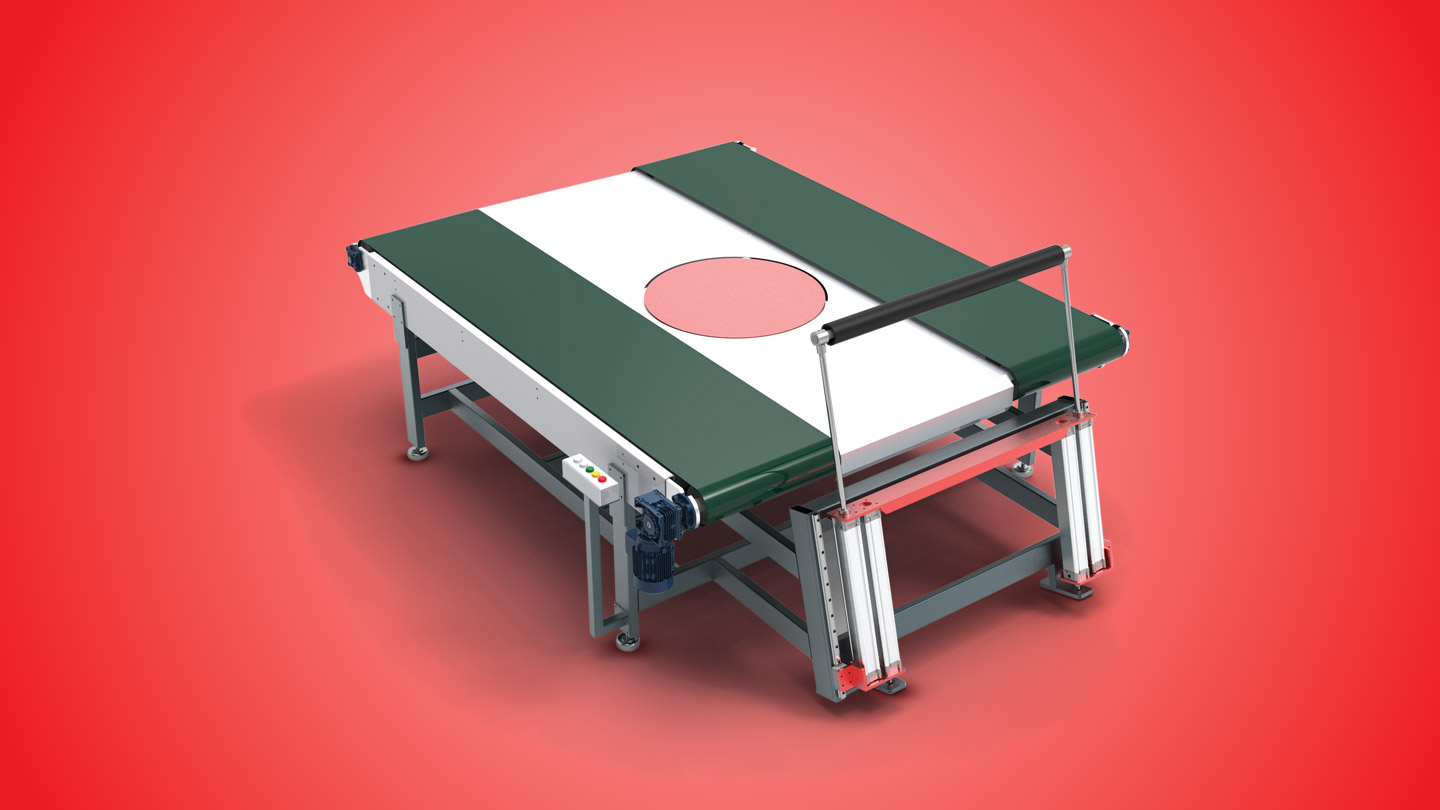

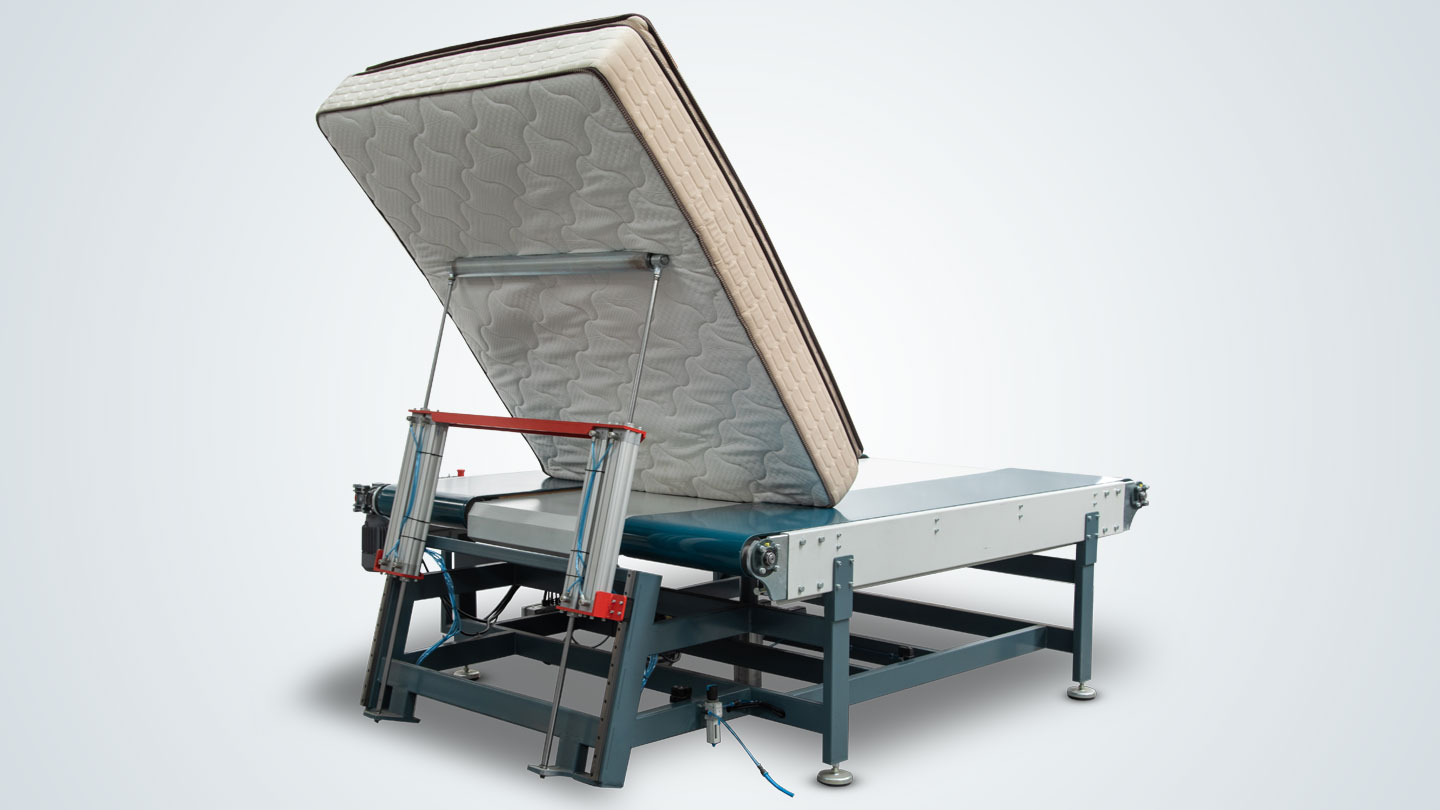

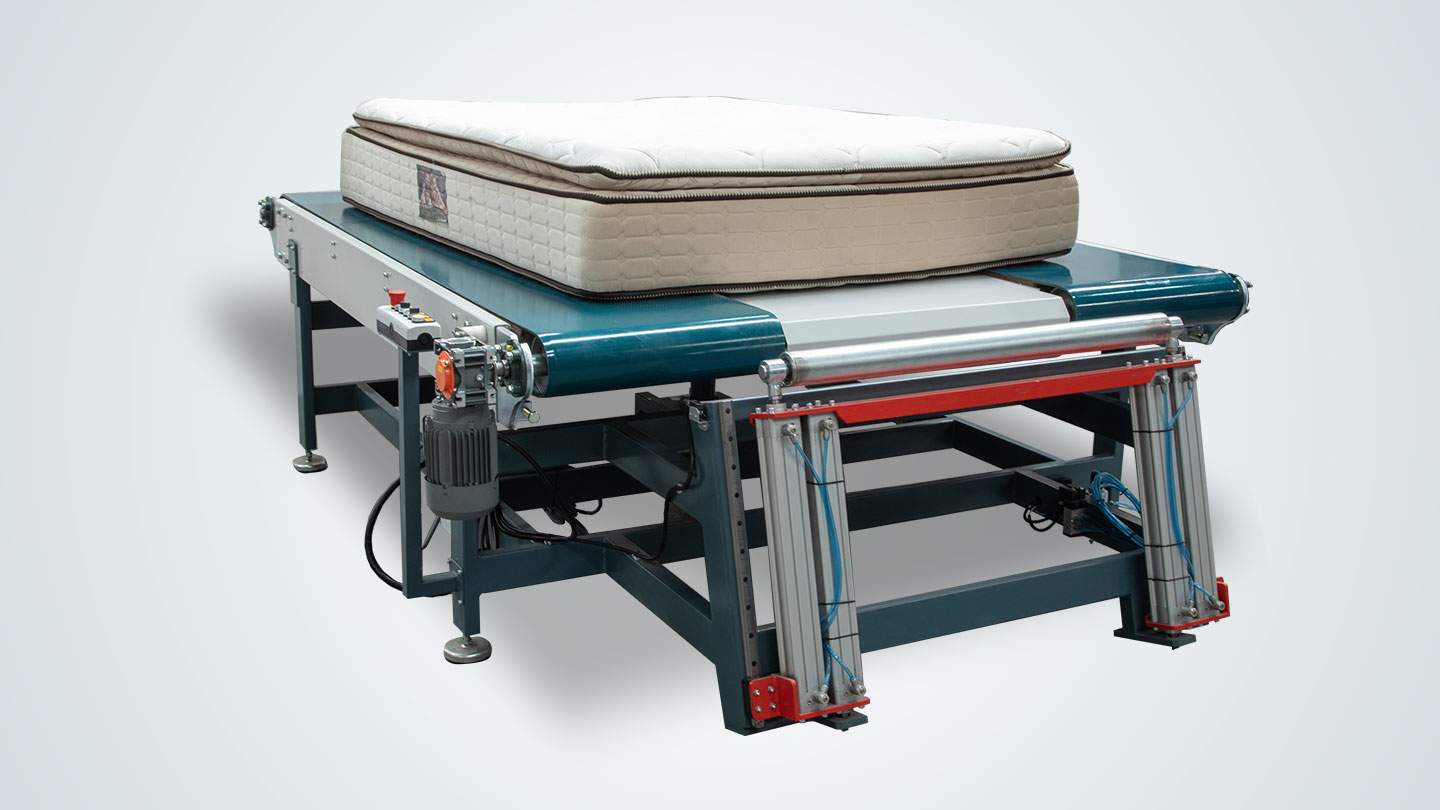

Quality Control Conveyor with Flipper

MT-CON/1700

Quality-Control-Conveyor-with-Flipper-
Quality-Control-Conveyor-with-Flipper-2-Lineer
Quality-Control-Conveyor-with-Flipper-3-Lineer
Quality-Control-Conveyor-with-Flipper-Dimension

Automatic Centering

Centers the final product, simplifying the quality control process.

Rotating Platform

Offers 360° edge control and the ability to rotate both surfaces 180°.

Product Security

Prevents product deformation during flipping or rotation

Compact Design

The 2.4 m length saves space and minimizes time loss.

Advanced Features

Sensors automatically detect the product. Can function as a transfer conveyor in processes that do not require flipping. Features a durable, low-air-consumption Festo pneumatic system.

Remote Support

Online support is available.
SPECIFICATIONS

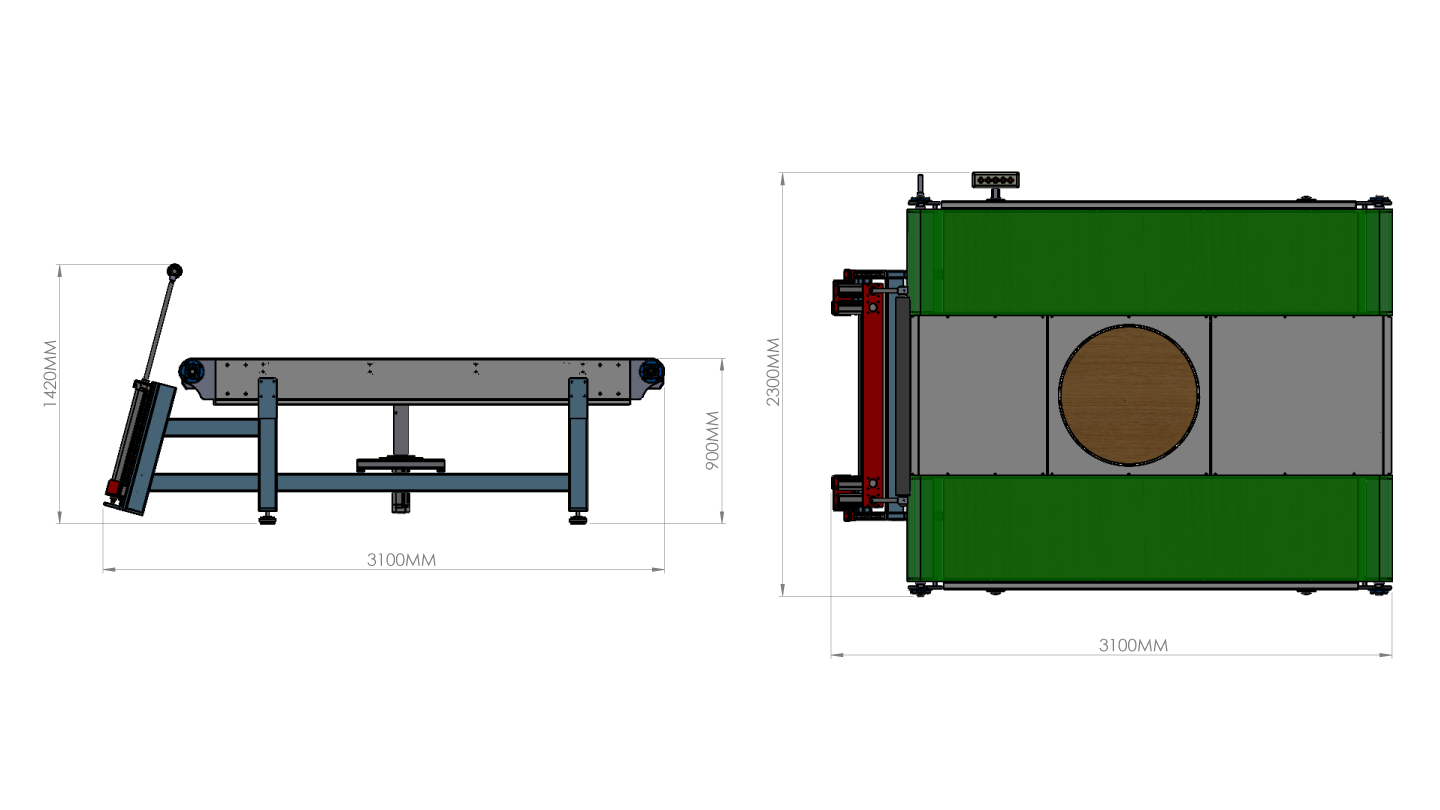

DimensionW: 2300 - L: 3100 - H: 900 (mm)
Max. Product DimensionW: 2000 - L: 2250 - H: 500 (mm)
Min. Product DimensionW: 700 - L: 1800 - H: 100 (mm)
Weight550 kg
Capacity1 mattress / 30-45 secs
Conveyor2.7 PVC Belt
Power0.75 kW
Air Pressure6 - 8 bar
Electricity380 VAC (II+N+TT)
