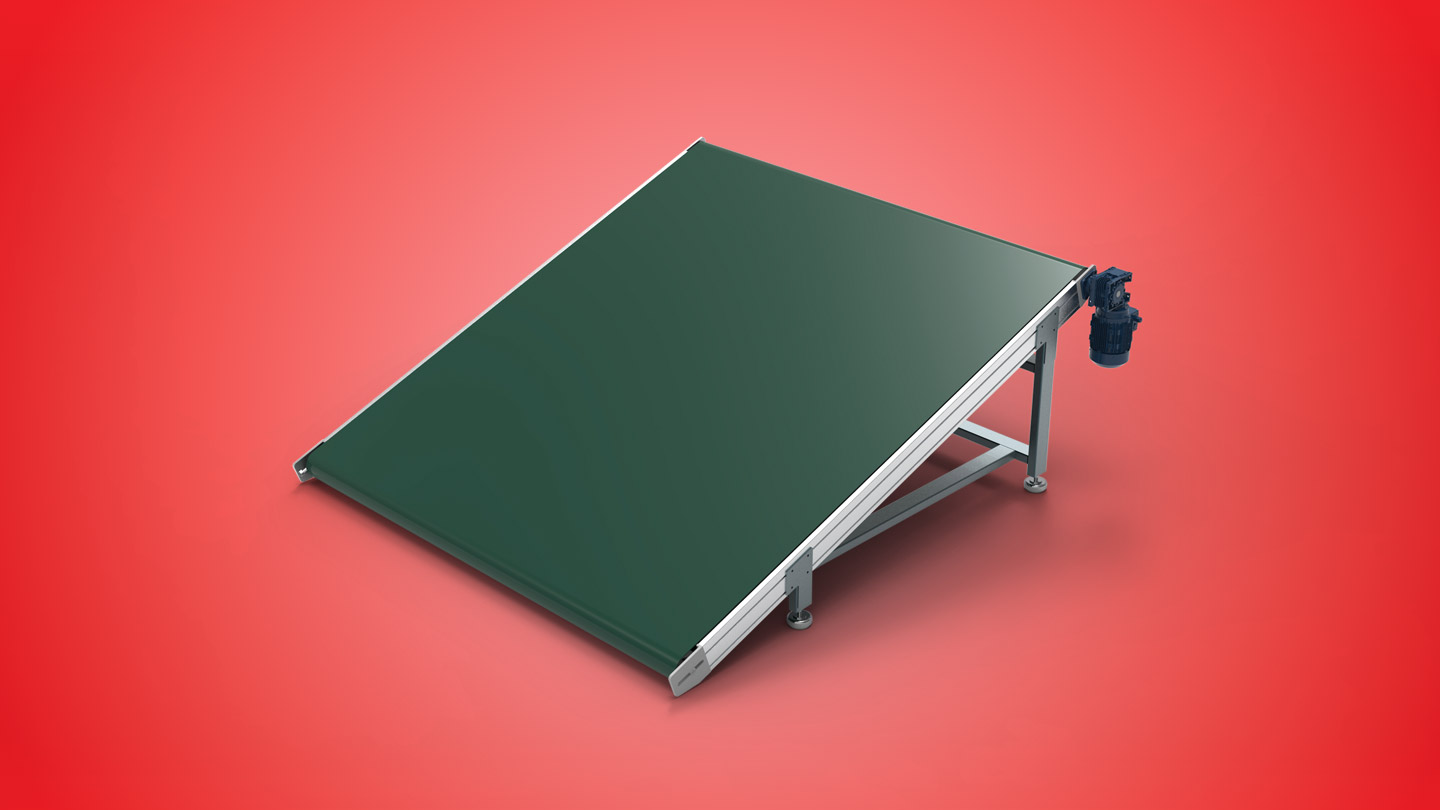

Ramp Conveyor

MT-CON/1900

Ramp-Conveyor
Ramp-Conveyor-2
Ramp-Conveyor-3
Ramp-Conveyor-Dimension

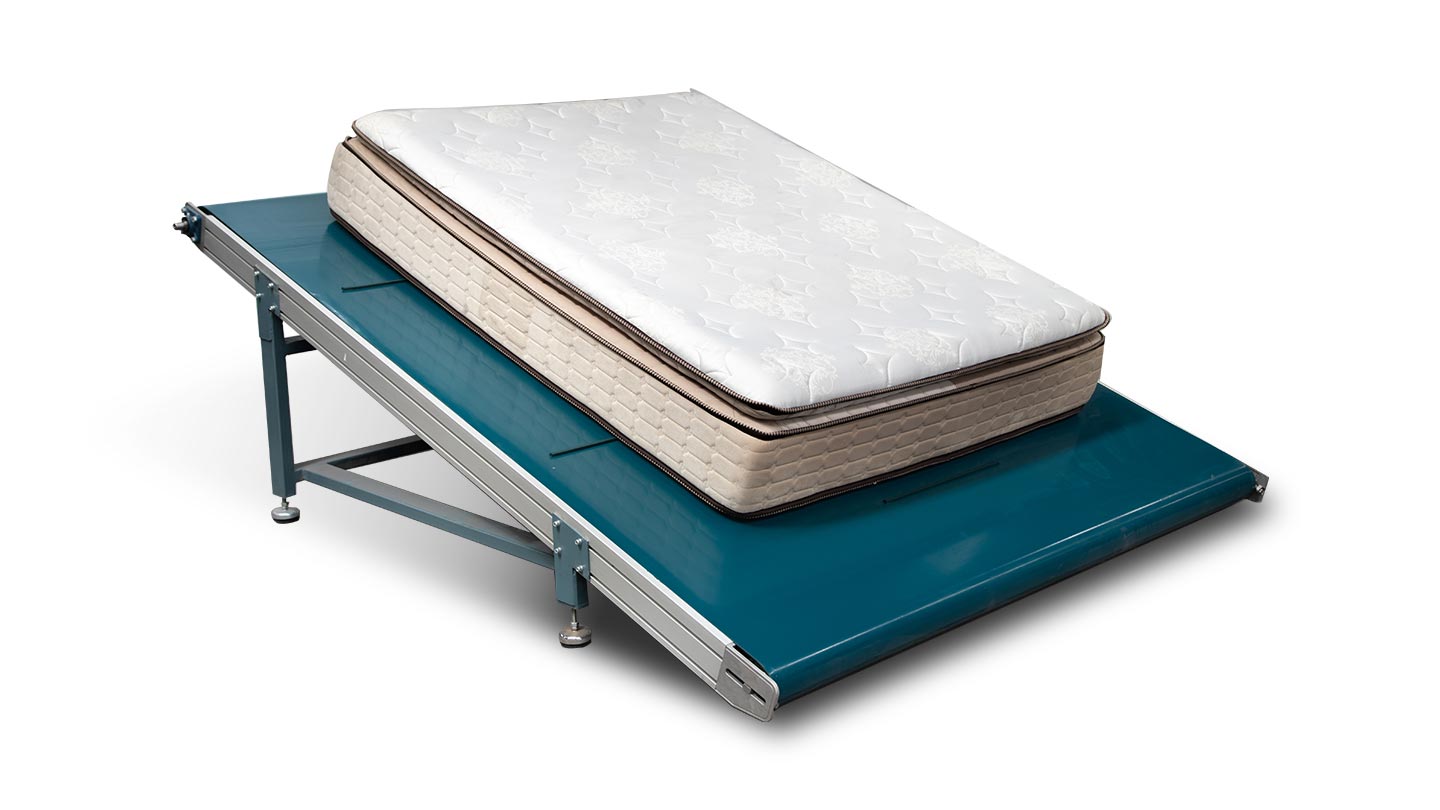

Flipping and Transfer

Flips mattresses and transfers them without extra time or slowing down production speed.

Barrier System

Prevents mattress slipping with barriers on the belt.

Durable Belt

Features a 2.7mm PVC anti-static belt for smooth operation. Operates at 20 m/min with speed adjustment options in accordance to production dynamics.
SPECIFICATIONS

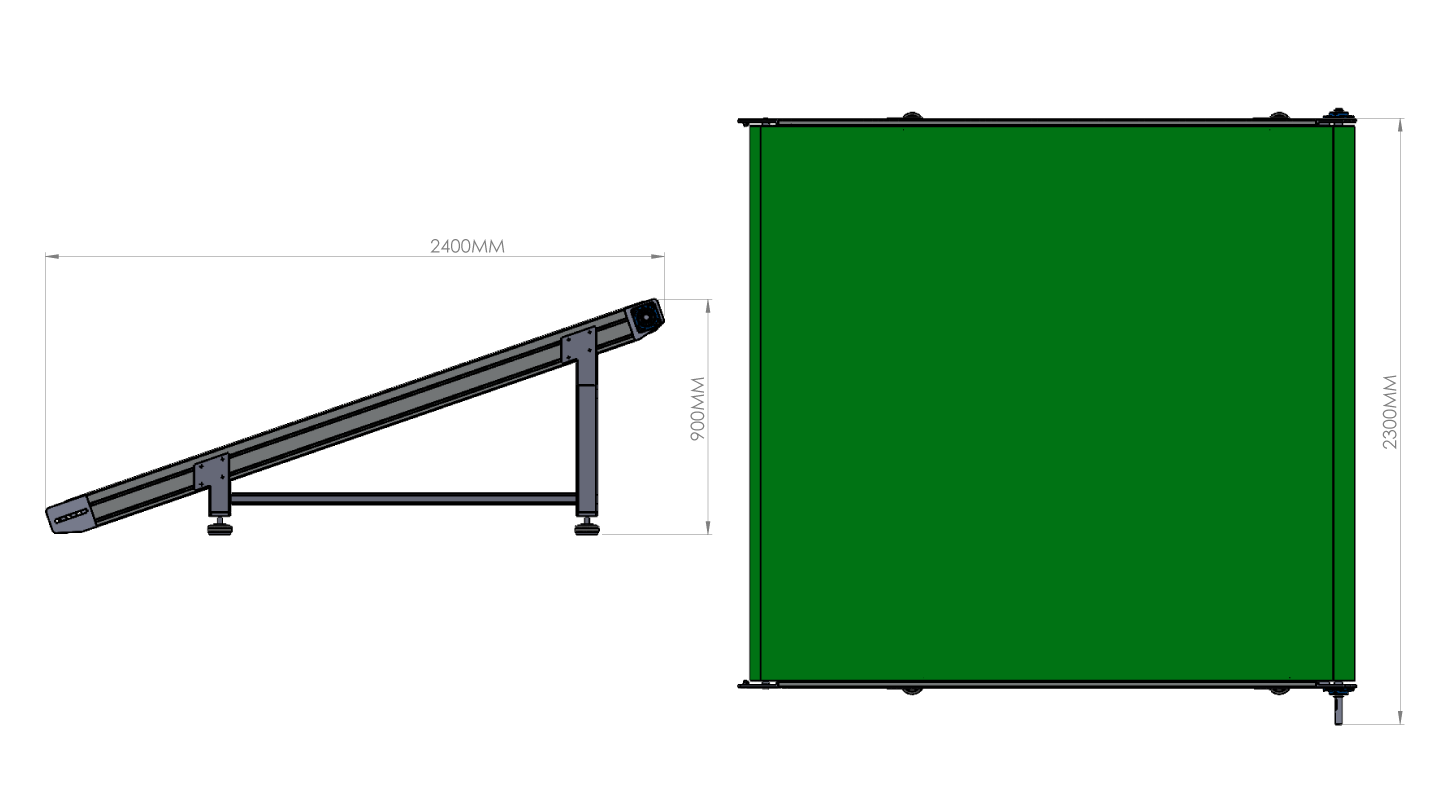

DimensionW: 2300 - L: 2400 - H: 900 (mm)
Max. Product DimensionW: 2200 - L: 2200 - H: 500 (mm)
Min. Product DimensionW: 700 - L: 1800 - H: 100 (mm)
Weight180 kg
Conveyor2.7 PVC Belt
Power0.75 kW
Air Pressure6 - 8 bar
Electricity380 VAC (II+N+TT)
