Roll Fabric Slitter Machine

MT-CU/1000

Roll-Fabric-Slitter-Machine
Roll-Fabric-Slitter-2-Lineer
Roll-Fabric-Slitter-3-Lineer
Roll-Fabric-Slitter-4-Lineer
Roll-Fabric-Slitter-Machine-Dimension

FEATURES

This machine is an advanced solution for precision cutting of woven and knitted fabrics, non-woven materials, 3D spacers, and curtain fabrics. It ensures exceptional cutting quality and efficiency, even with challenging materials.

HSS Circular Blades

High-speed steel blades ensure precise cuts and withstand high temperatures during operation.

Customizable Cutting

Adjustable cutting widths (25 mm–1250 mm) with millimetric precision through the centering system.

Efficient Blade System

Includes a motorized tempered blade system, adjustable sharpening for durability, and cooling for stability.

Adjustable Components

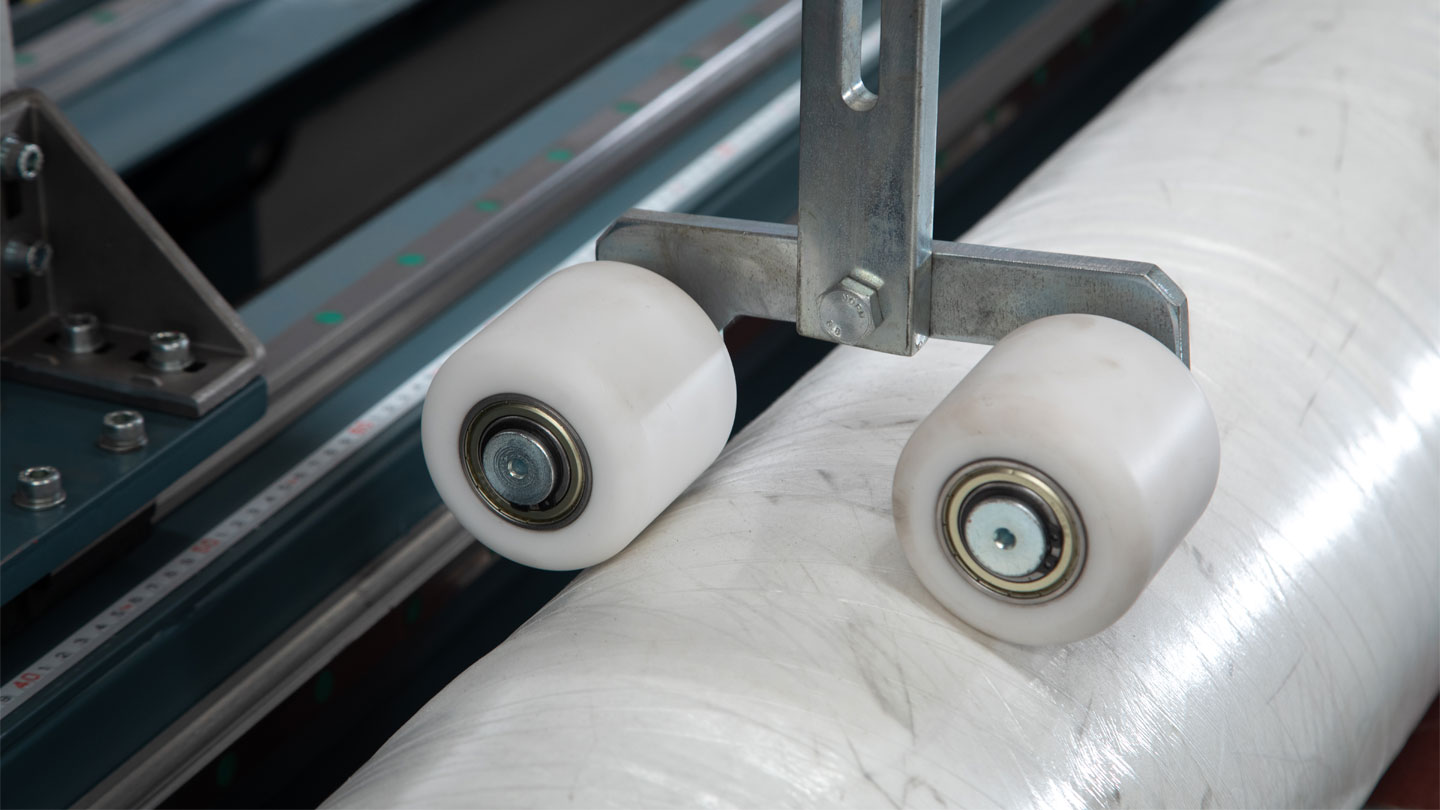

Drums and roll holders adapt to different roll diameters for precise slitting.

Enhanced Safety

Automatic ergonomic safety cover and motorized blade movement ensure safe operation.

Durable & Low Maintenance

Built for long service life and easy upkeep.
SPECIFICATIONS

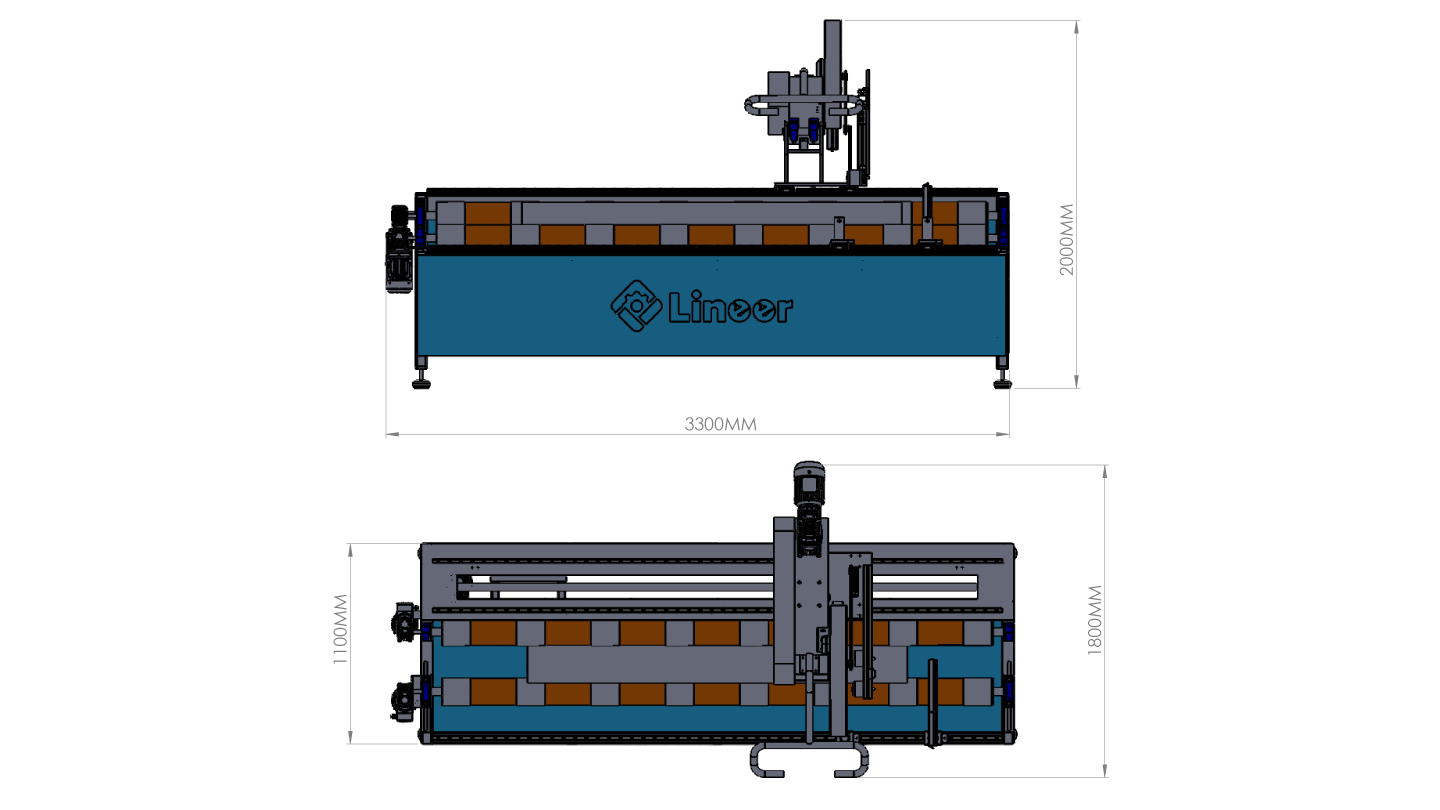

DimensionW: 1100 - L: 3300 - H: 2000 (mm)
Max. Product DiameterØ350
Min. Product Length2400 mm
Weight1000 kg
Power2.2 kW
Air Pressure6-8 bar
Electricity380 VAC (II+N+TT)
