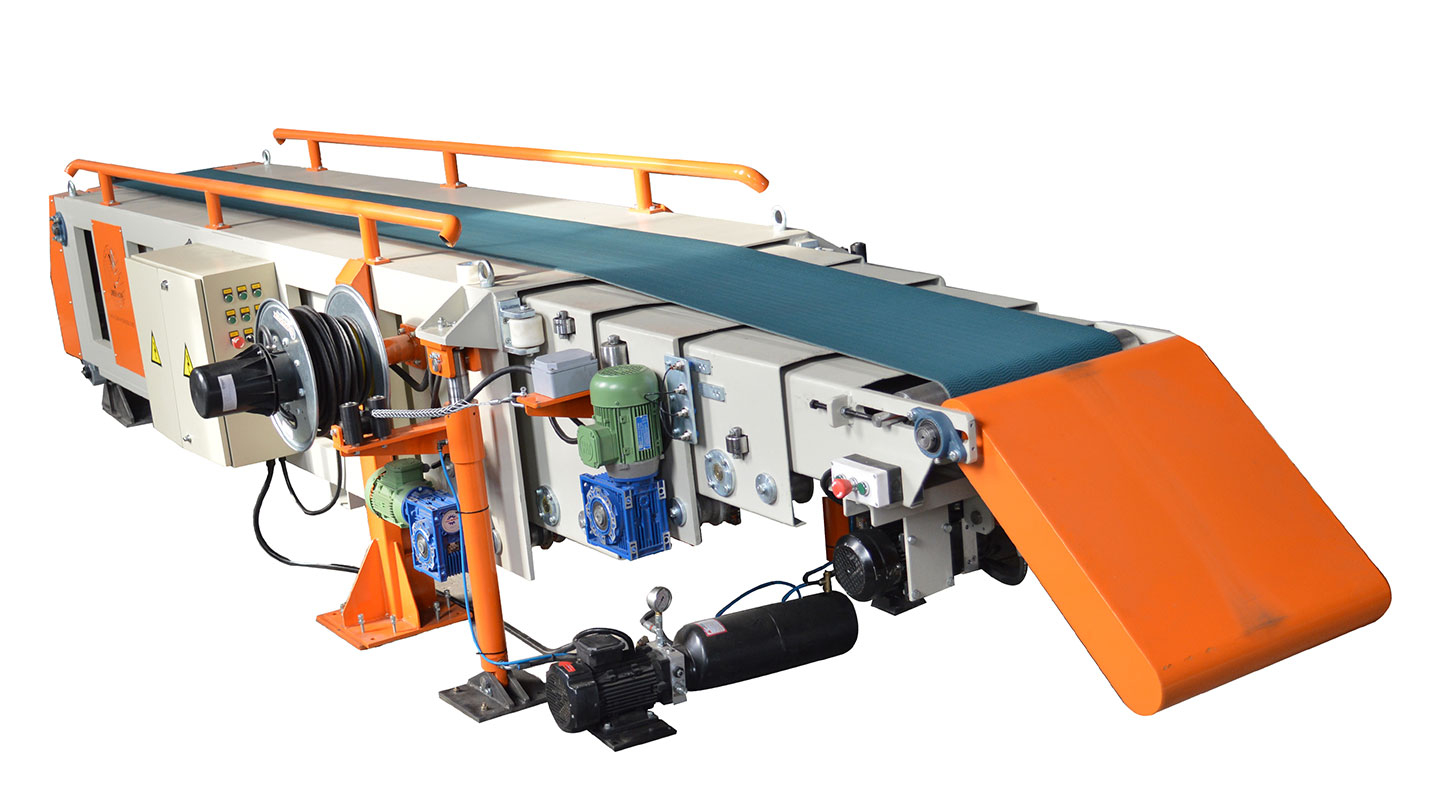

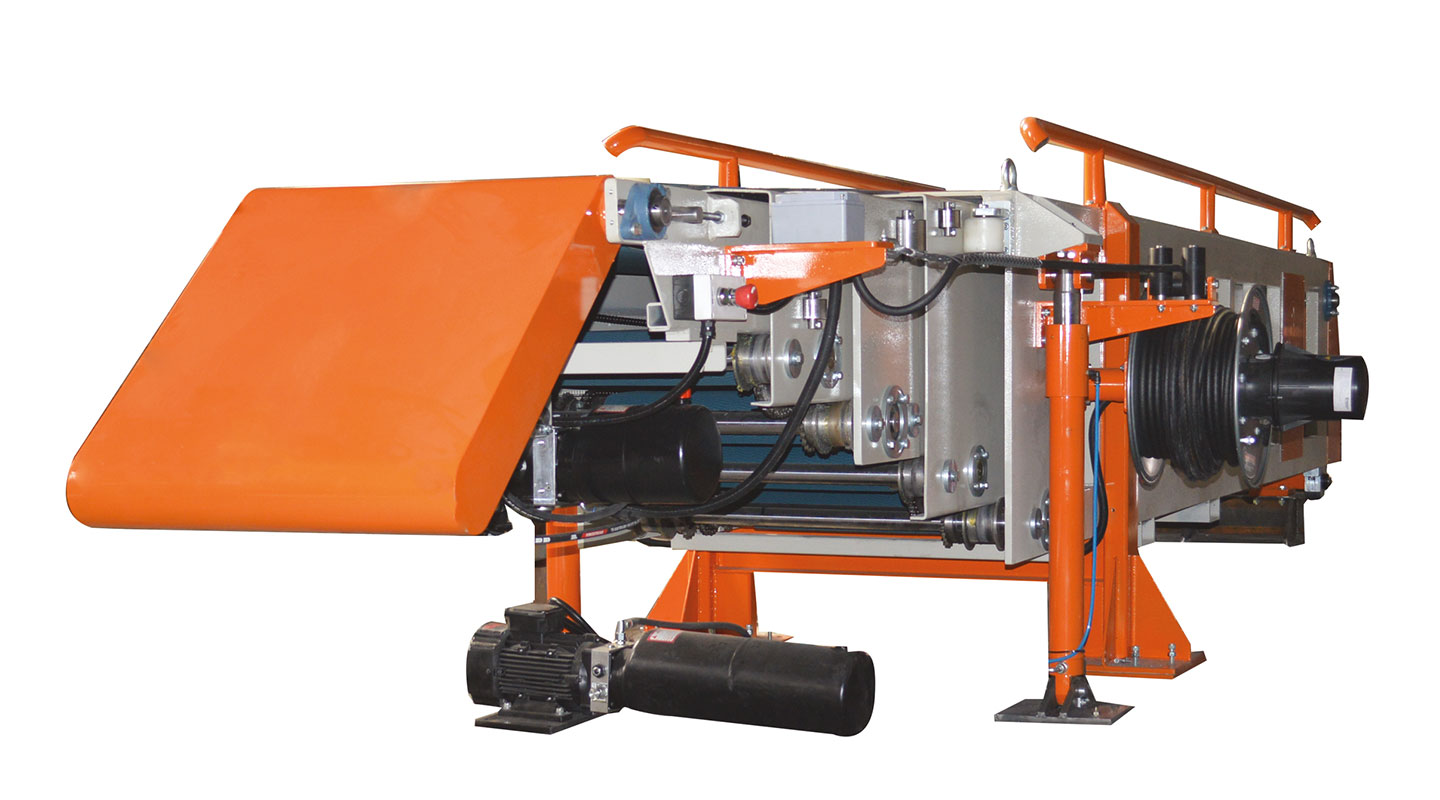

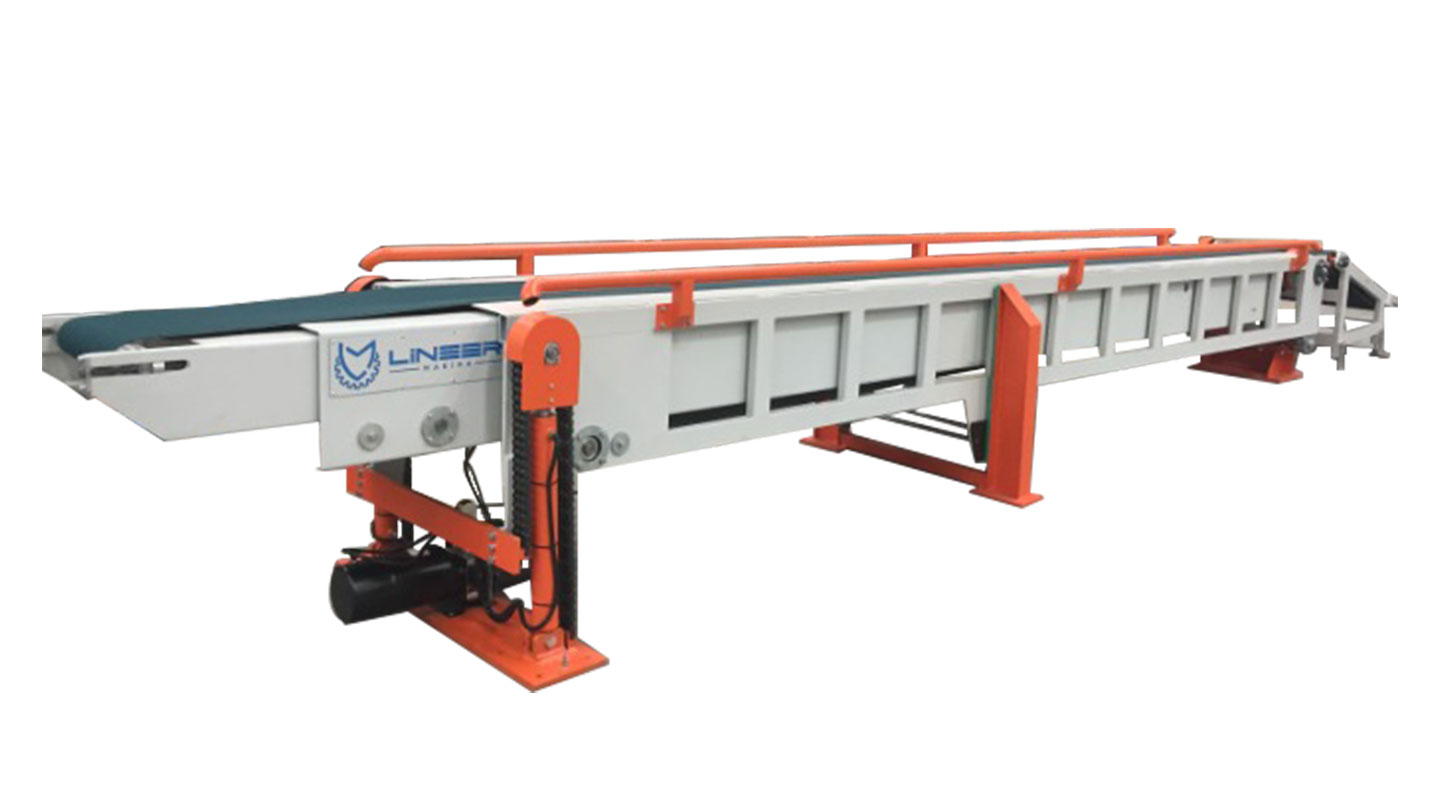

Telescopic Loading and Unloading Conveyor

MT-STT/1200

FEATURES

This conveyor system is designed for safely, quickly, and ergonomically loading and unloading trucks, containers, and vehicles. It consists of extendable parts that reach into the vehicle. The number of conveyor booms, size, and belt width can be selected based on the intended use and the type of vehicle and product involved in the loading/unloading process. It meets all warehouse needs.

ADVANTAGES

Provides efficient storage and distribution with an optional pallet loading/ unloading system.
Provides an ergonomic working environment.
Enhances workplace safety.
Accelerates the loading and unloading process.
Increases operational efficiency.
SPECIFICATIONS
DimensionW: 2300 - L: 2600 - H: 900 (mm)
Max. Expansion18000 mm
Min. Expansion8500 mm
Weight2200 kg
Conveyor SizeW: 1000 - L: 1100 - H: 800 (mm)
Power4 kW
Electricity380 VAC (III+N+TT)
